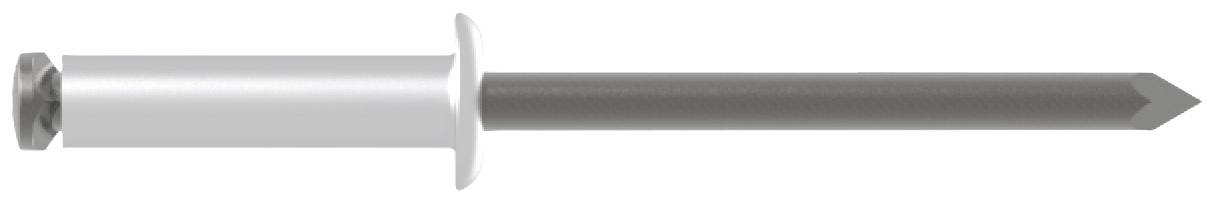

Gesipa 1455494 Speciality rivet Steel Aluminium 500 pc(s)
EAN:
Part number:
Item no:
Product type
Speciality rivet
Material (spike)
Steel
Material (sleeve)
Aluminium
Max. clamping range
5.0 mm
Min. clamping range
2.5 mm
Sales and shipping:
Number (Package size 500 pc(s))
Total (€ 0.04 / piece)
€
Technical specifications
- Product type
Speciality rivet
- Content
500 pc(s)
- Material (spike)
Steel
- Material (sleeve)
Aluminium
- Max. clamping range
5.0 mm
- Min. clamping range
2.5 mm
- Tubular rivet diameter
4 mm
- Tubular rivet length
10 mm
- Clamping range
2.5 - 5.0 mm
- Head Ø
8
- Head height
1.4 mm
- Hole diameter
4.1 mm
- Rivet mandrel diameter
2.1 mm
- Shear force
1200 N
- Head shape
Truss head
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2910675 Gesipa 1455494 Speciality rivet Steel Aluminium 500 pc(s)
Description
GESIPA expanding blind rivets
There are numerous applications that require the use of special blind rivet connections.
GESIPA has developed a number of models to meet these requirements.

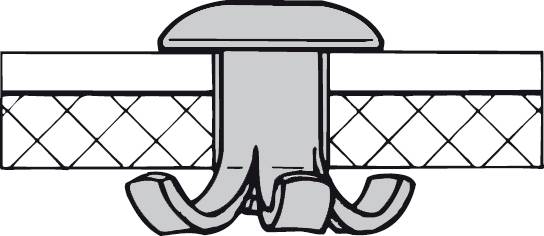

Expanding blind rivets are needed when soft or porous components such as wood, hard fiber, fiberglass or
Gypsum boards with a high clamping force. The rivet pin falls out of the setting process
The rivet flushes out the hollow rivet and on the closing head side the rivet divides the hollow rivet in four parts. They get caught up
Then into the material. Typical application areas are plastic and wood element mounting, caravan construction
Fixing inner lining.
This text is machine translated.
There are numerous applications that require the use of special blind rivet connections.
GESIPA has developed a number of models to meet these requirements.
Expanding blind rivets are needed when soft or porous components such as wood, hard fiber, fiberglass or
Gypsum boards with a high clamping force. The rivet pin falls out of the setting process
The rivet flushes out the hollow rivet and on the closing head side the rivet divides the hollow rivet in four parts. They get caught up
Then into the material. Typical application areas are plastic and wood element mounting, caravan construction
Fixing inner lining.
