Name: Gesipa 1820627 Blind rivet Stainless steel Aluminium alloy Stainless steel 250 pc(s)
Brand: Gesipa
SKU: 3411697
Price: 36.99 EUR
Availability: BackOrder

A long, silver face mask with a rounded tip and a handle featuring three distinctive indentations.

A long, silver-coloured nail with a flat head and a sharp point lies horizontally.

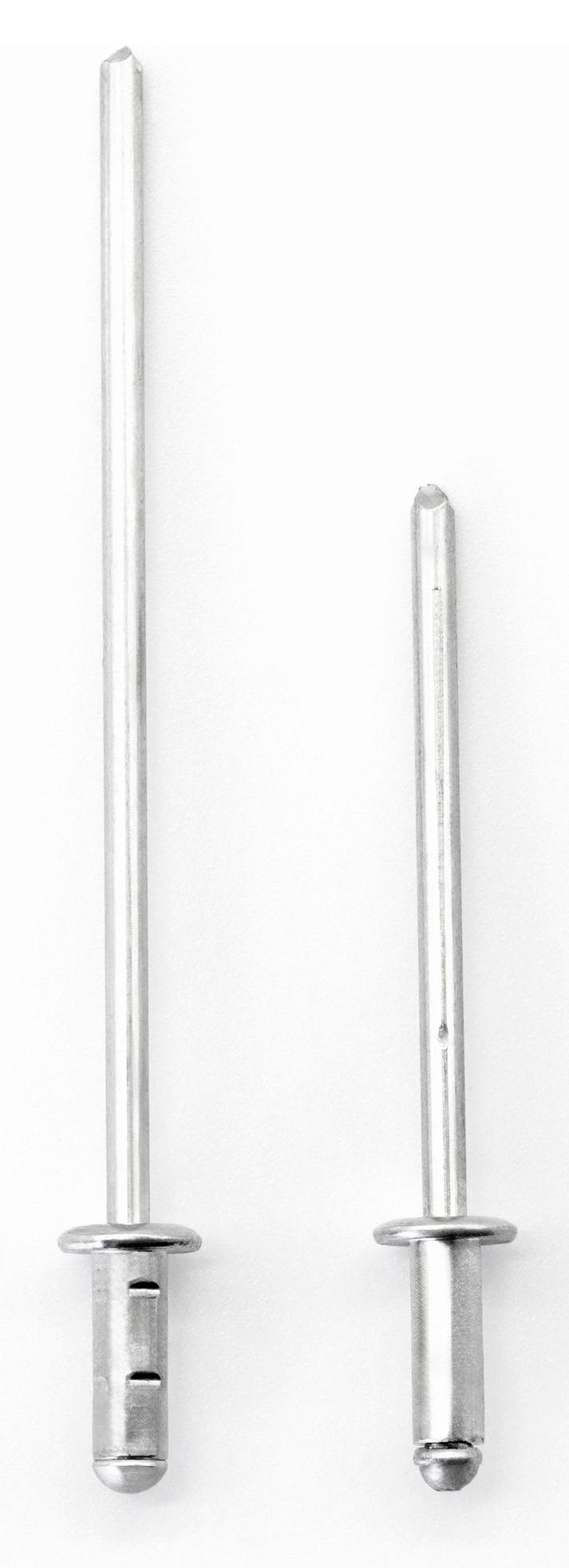

Two metal rivets of different sizes, vertically arranged. The longer rivet on the left and the shorter rivet on the right.

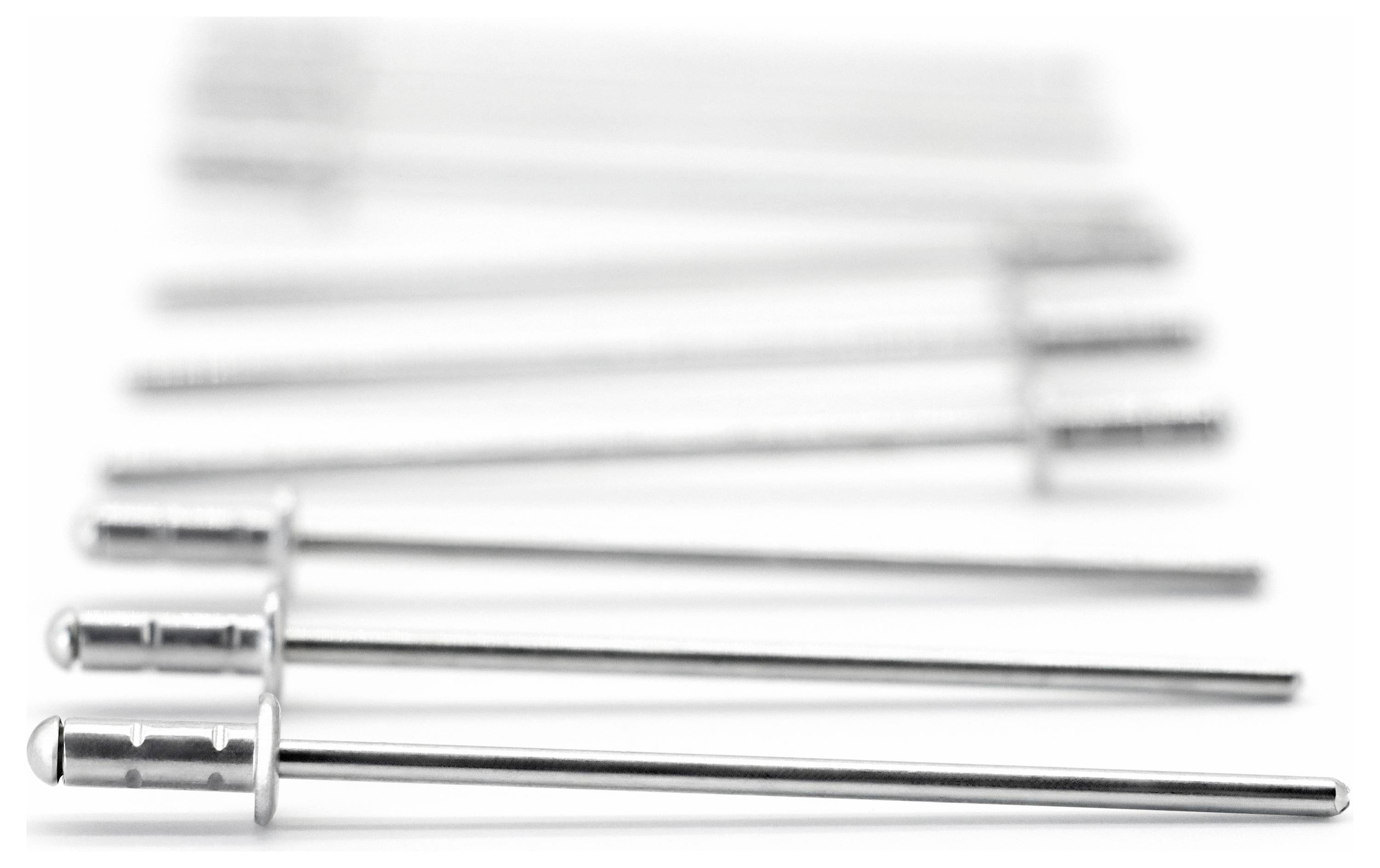

Ten silver metal rivets lie in a row, blurred in the background, with focus on the foremost rivet.

1/4

Product type

Blind rivet

Material (spike)

Stainless steel

Material (sleeve)

Aluminium alloy

Material

Stainless steel

Max. clamping range

6.50 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 20 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 250 pc(s))

Set(s)

Total (€ 0.15 / piece)

€ 36.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Universal grip blind rivets aluminum/Niro 4.8 x 10

Long rivet pin - enables the use of extended mouthpieces
Economical – one dimension can replace up to five standard dimensions
Easy to use - with standard device and extended standard mouthpiece
Standardization – even for small annual requirements

Technical specifications

Product type: Blind rivet

Content: 250 pc(s)

Material (spike): Stainless steel

Material (sleeve): Aluminium alloy

Material: Stainless steel

Max. clamping range: 6.50 mm

Min. clamping range: 0.50 mm

Tubular rivet diameter: 4.80 mm

Tubular rivet length: 10.00 mm

Clamping range: 0.50 - 6.50 mm

Head Ø: 9.50

Hole diameter: 4.90 mm

Material properties: rust-proof

Rivet mandrel diameter: 2.70 mm

Shear force: 1.500 N

Head shape: Truss head

Tensile force (max.): 2.300 N

Documents & Downloads

Datasheet

Datasheet 3411697 Gesipa 1820627 Blind rivet Stainless steel Aluminium alloy Stainless steel 250 pc(s)

User & Safety Instructions

User & Safety Instructions 3411697 Gesipa 1820627 Blind rivet Stainless steel Aluminium alloy Stainless steel 250 pc(s)

Description

GESIPA Universal Grip - The PolyGrip connector for difficult to access rivet joints

For applications where there is very little space for the processing device due to the design (interference edges, deep depressions), the use of extended mouthpieces is recommended. However, you need a blind rivet with extended rivet pin. The Universal Grip blind rivet is now available for these applications. The Universal Grip combines the advantages of PolyGrip with those of an extended rivet punch and can be processed with all our mouthpieces with special length.

Area of application
• Hard-to-reach rivet areas of any kind, e.g. riveting in profiles
• Rivets close to component edges

THE ADVANTAGES OF UNIVERSAL GRIP
• Long rivet punch - allows the use of extended mouthpieces
• Large clamping area - one dimension can replace up to five standard dimensions
• Economical - usable with standard device and extended standard mouthpiece
• Standardization - also for small annual requirements

This text is machine translated.
