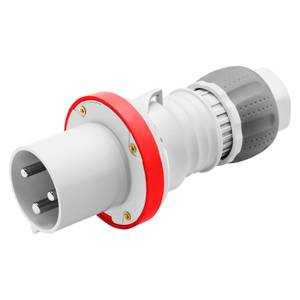

Gewiss GW61021H GW61021H CEE plug 63 A 415 V AC 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
CEE plug
- Nominal voltage
415 V AC
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
IP44
- Content
1 pc(s)
- Number of pins
5
Gland nut
5
Plastic
Nickel-plated
63 A
Screwed terminal
Straight
FALSE
Other
IP44
FALSE
6 h
Red
380-415 V (50+60 Hz) red
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3120705 Gewiss GW61021H GW61021H CEE plug 63 A 415 V AC 1 pc(s)
Description
Connector for industrial applications according to IEC 60 309 (EN 60 309) Series IEC 309 HP with locking system made of stainless steel screws and threaded inserts made of brass, nickel-plated contacts, plastic parts halogen-free according to EN 50 267-2-2 and rubberized surface, cable guide as cable gland with integrated strain relief, connection system: Screw terminal, connection cross-section 6 - 16 mm² fine-wired / 6 - 25 mm² single or multi-wired, temperature range -25 - +40 °C, UV resistant, IK09 impact resistance
