Technical specifications

Product type: Cable reel

Cable length: 25 m

Type A: CEE plug (5-pin, 63 A)

Type B: CEE socket (5-pin, 32 A)
CEE socket (5-pin, 32 A)
CEE socket (5-pin, 16 A)
CEE socket (5-pin, 16 A)
PG socket
PG socket
PG socket

Outlets: 7

Material: Steel plate

Differential current rating: 0.03 A

Type: GIFAS-PROFLEX-07 cable 5 x 16 mm²

Weight: 95 kg

: IP54

UKCA: not relevant

Description

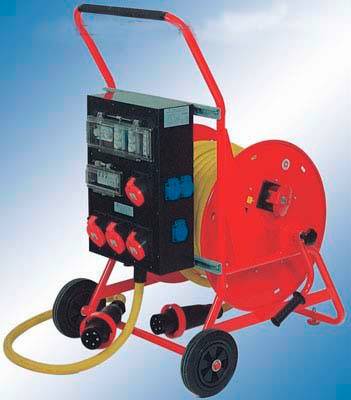

GIFAS sheet steel cable roller 521 in standard color Traffic red RAL 3020 with ball-bearing steel drum body, carry handles on both sides and insulated handle with mounted solid rubber distributor 7800 Dimensions: H x B x T = 1130 x 720 x 775 mm Protection type: IP 54 Gl-factor: 0.5 Weight: Approx. 95 kg Equipment of the cable roller: Input: 25 m GIFAS-Proflex-07 cable 5 x 16 qmm with CEE-plug 5 x 63 A/400 V, output: 2 CEE sockets 5 x 32 A/400 V protected via Neozed fuses 25 A, 2 CEE mounted sockets 5 x 16 A/400 V protected via Neozed fuses 16 A, 3 safety contact sockets protected via 3 circuit breakers 16 A, 1-pole in B characteristic, 1 ground fault circuit breakers 25/0.03 A 4-pole for safety sockets, version: Protective organs behind 2 transparent protective flaps arranged, sockets on mounted solid rubber distributor mounted protective contact sockets arranged laterally on distributor frame

This text is machine translated.
