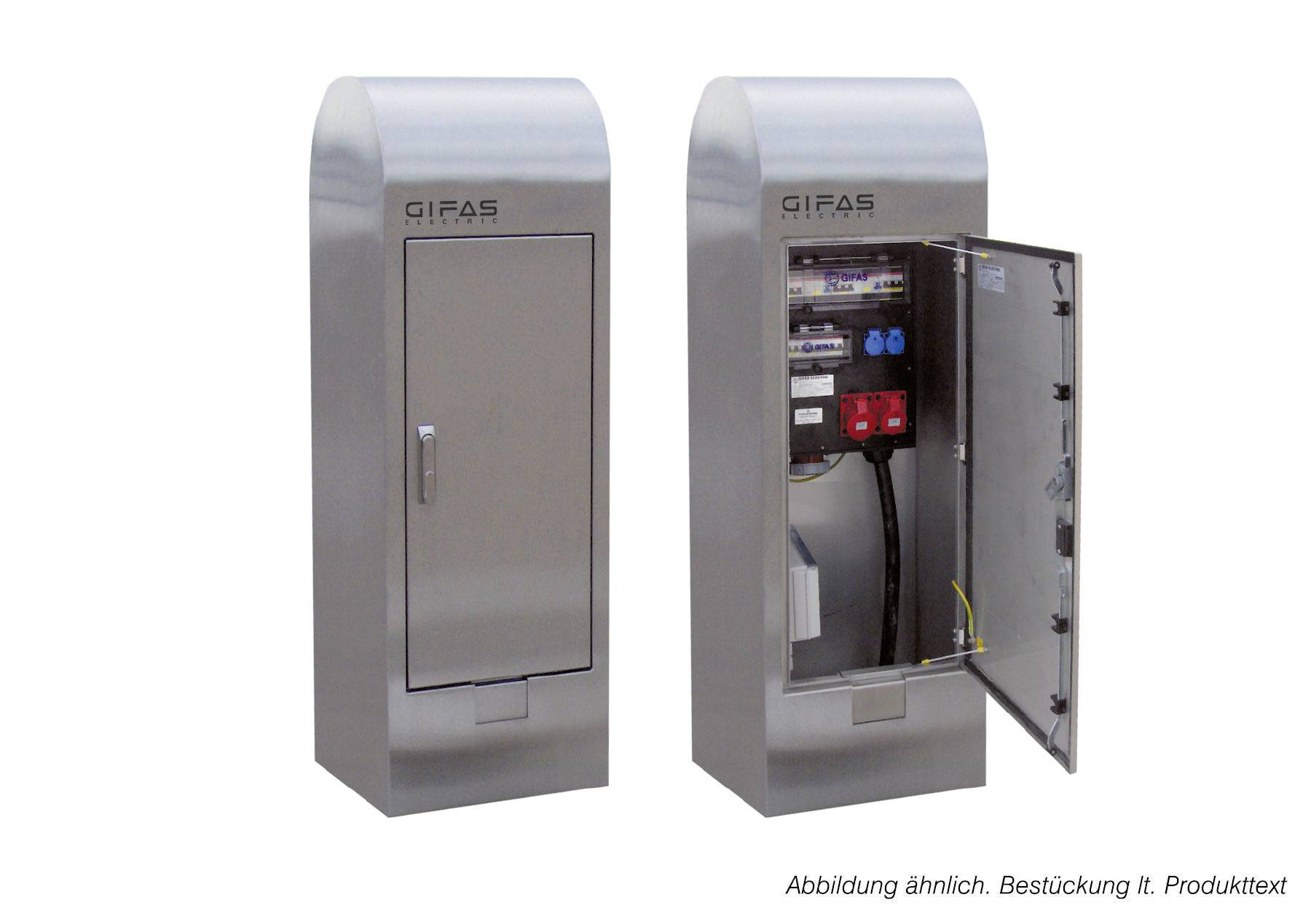

Gifas Electric Socket tower 272085

GIFAS-Power column input:1 Cable gland M 32 from below (outer diameter of the feed line 14-25 mm) and 1 terminal block 5 pin, 16 qmm for placing the feed line 5 x 63 qmm Output: 1 CEE-mounted socket 5 x 16 A/400 V secured via 1 LS-switch 63 A, 3-pin in C-Characteristic 1 CEE-Built-in socket 16 1 x 32 A/400 V secured via 1 LS-switch 32 A, 3-pin in C-Characteristic 2 CEE-Built-in sockets 2 x 16 A/63 V secured via 0.03 LS-switch 5 A, 3-pin in C Characteristic 6 Safety sockets protected via 6 LS-Switch 16 A, 1-pole in C Characteristic 2 FI-Switches 400/5 A, 4 poles for exits Built-in:1 digital three-phase meter Design:- with integrated solid rubber distributor Type 7900- Energy column made of stainless steel V4A with service door incl. half-profile cylinder lock Material: 1.4404 Surface: Grain 240 matte-ground protective devices arranged behind 2 transparent protective flaps- Door is lockable when plugged!! Dimensions of energy column: 500 x 450 mm, height 1500 mm Dimensions of solid rubber distributor (H x W x D): 500 x 360 x 173 mm Protection type: IP 54Protection type: IP 65 with closed cable entry Gl-factor: 0.4Weight: Approx. 120 kg

This text is machine translated.
