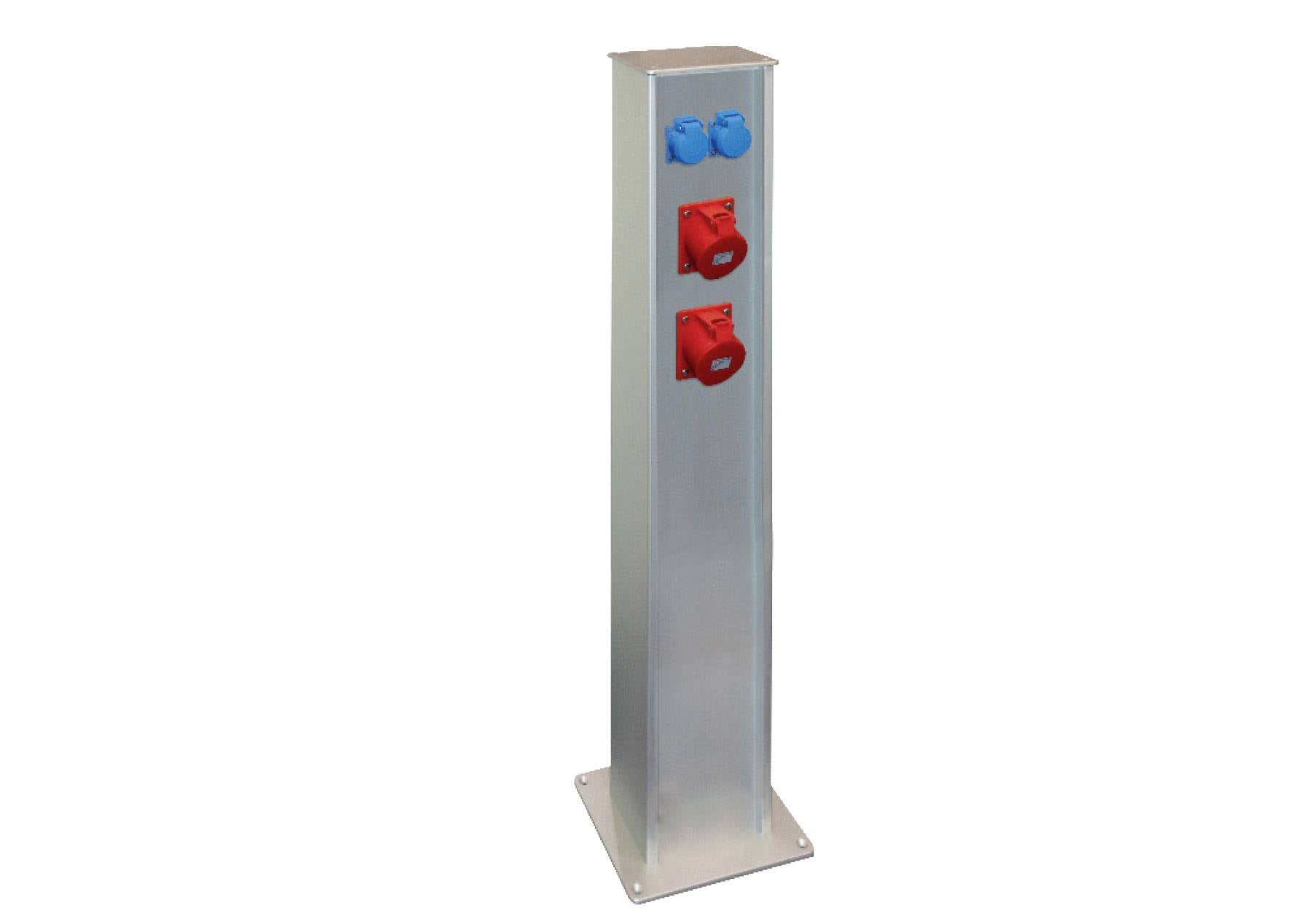

Gifas Electric Socket tower 276895
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- Security: Without
- Handling: Energy bollard
- Material of housing: Aluminium
- Product type
Socket tower
- No. of PG sockets
2
IP54
- Factory colour
Aluminium
- Dim
(W x H x D) 210 x 800 x 160 mm
- Width
210 mm
- Height
800 mm
- Content
1 pc(s)
- Depth
160 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3858830 Gifas Electric Socket tower 276895
Description
GIFAS Energy Column GAS160 Input: Through the column from below 1 terminal block 5-pin, 4 qmm Output:2 CEE-Mounting sockets 5 x 16 A/400 V straight design, without safety2 safety contact sockets with hinged lid without safety Design:- Column completely wired- Material: Aluminium- Structure according to drawing Dimensions Column: B x T = 160 x 110 mm Dimensions Base plate: B x T = 210 x 160 mm Height: 800 mmColour: silver anodized Protection type: IP 54
