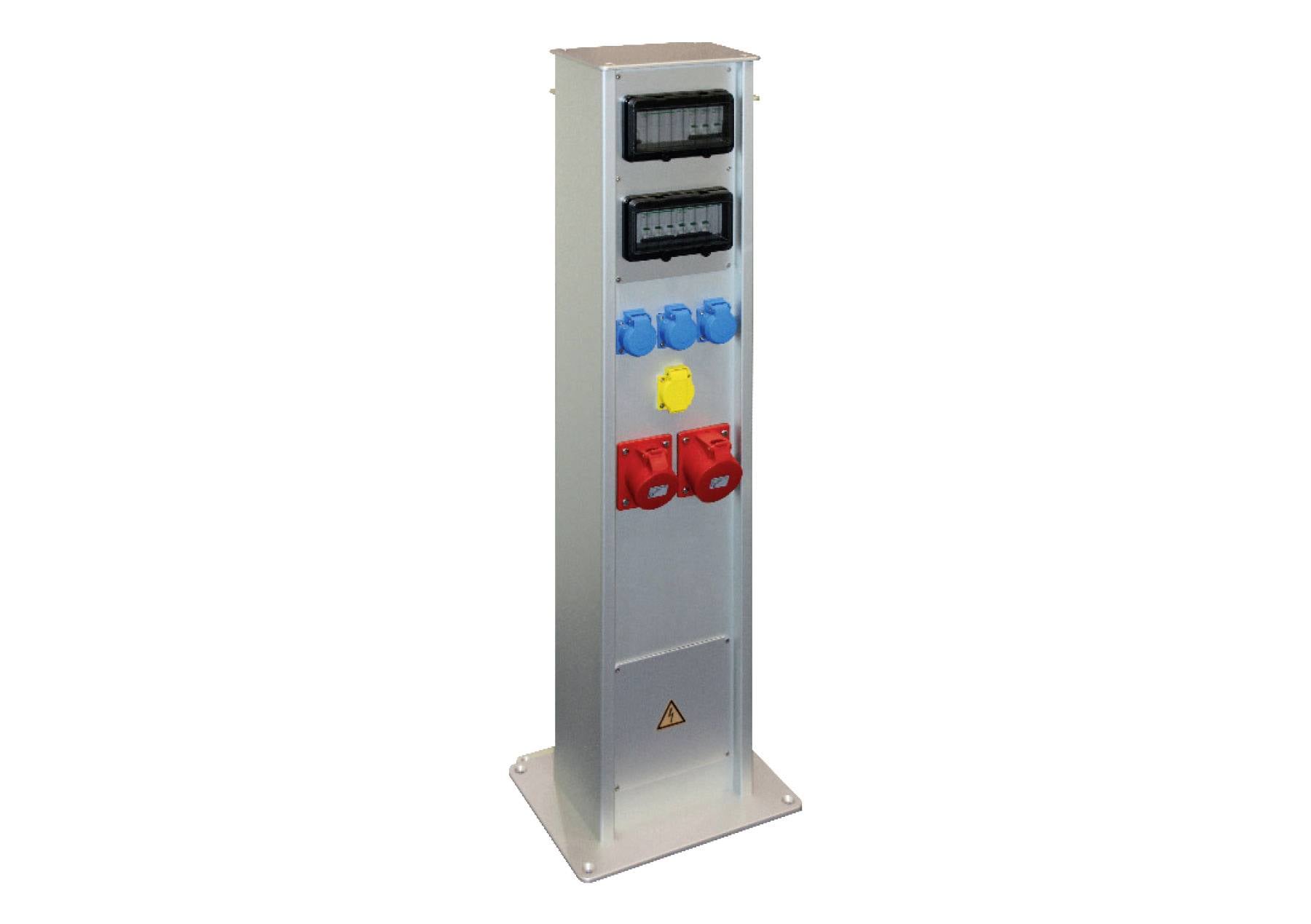

Gifas Electric Socket tower 318977
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- Protection: LS-switch
- Residual current type B
- Handling: Energy bollard
- Material of housing: Aluminium
- Product type
Socket tower
- No. of PG sockets
3
IP44
- Factory colour
Aluminium
- Dim
(W x H x D) 330 x 1200 x 250 mm
- Width
330 mm
- Height
1200 mm
- Content
1 pc(s)
- Depth
250 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3858832 Gifas Electric Socket tower 318977
Description
GIFAS aluminum column type GAS 230 input: 1 series terminal block 5-pin, 16 qmm behind revision cover (max. Fuse 63A) Output: 1 CEE mounted socket 5 x A/400 V secured via 1 circuit breaker 32A, 3-pole, in C-Characteristic 3 CEE mounted sockets 5 x 16 A/400 V secured via 2 circuit breakers 16A, 3-pole in C-Characteristic 4 earthed sockets 63 x 16A/0.03 V secured via 32 circuit breakers 16A, 1 in B-Characteristic 1 ground fault circuit breakers 3/230 A, 4-pole, Type B, for all sockets Design:- Colour: silver anodized- Protection type: IP 44- Protection devices behind transparent protective flap arranged- Column completely wired Dimensions: width: 230 mm depth: 150 mm Height: 1200 mm (with base plate 330 x 250 mm)
