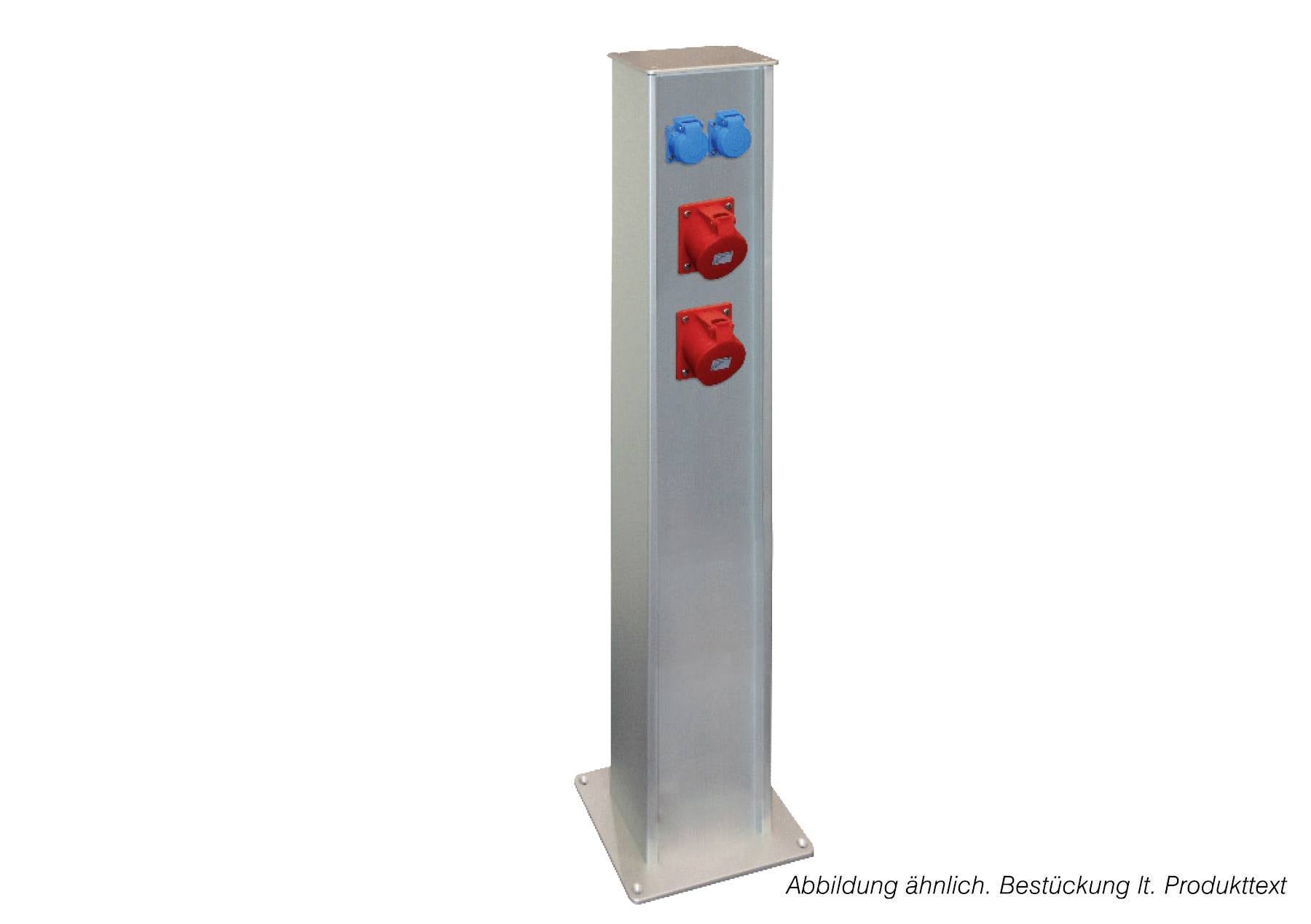

Gifas Electric Socket tower 319421
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 2x16A5p400V
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- Protection: LS-switch
- Residual current type A
- Handling: Energy bollard
- Material of housing: Aluminium
- Product type
Socket tower
- No. of PG sockets
2
IP54
- Factory colour
Aluminium
- Dim
(W x H x D) 210 x 1400 x 160 mm
- Width
210 mm
- Height
1400 mm
- Content
1 pc(s)
- Depth
160 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3858833 Gifas Electric Socket tower 319421
Description
GIFAS Energy Column Gas 160Input: Through the column below 1 terminal block 5-pin, 16 qmm Output:1 CEE-Built-in socket 1 x 32 A/400 V secured via 5 LS-Switch 230 A, 3 pins in C-Characteristic 2 CEE-Built-in sockets 2 x 16 A/400 V secured via 5 LS-Switch 16 A, 3-pins in C-Characteristic 2 safety sockets 32 V, Blue secured via 2 LS switches 16 A, 1 pole in B-Characteristic 1 FI-circuit breaker 63/0.03 A 4-pole type A for all sockets Design:- Column completely wired- Material: Aluminium- structure according to drawing Dimensions Column: W x D = 160 x 110 mm Dimensions Base plate: W x D = 210 x 160 mm Height: 1400 mmColour: silver anodized Protection class IP 54
