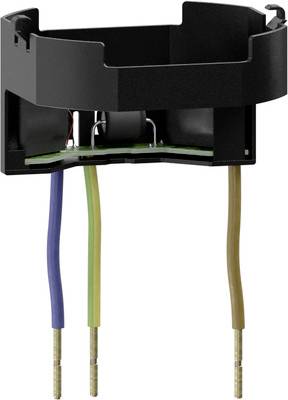

GIRA 033800 Surge protection module 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Nominal voltage AC 230 V
- Max. Continuous voltage AC 255 V
- Nominal surge current (8/20) (L-N) 3 kA
- Total leakage surge current (8/20) (L+N-PE) 10 kA
- Protection level L-N 1.3 kV
- Protection level L-PE/N-PE 1.5 kV
- Max. Overcurrent protection device V-wiring (fuse): 16 A.
- Number of poles: 1
- Max. Conductor cross-section rigid (single/multi-wired): 1.5 mm²
- Signalling at device: Acoustic
- Test class type 3: Yes
- With noise filter: No.
- Product type
Surge protection module
IP20
- Manufacturer part #
033800
- Content
1 pc(s)
- Mounting type
Surface-mount
Flush mount
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3821267 GIRA 033800 Surge protection module 1 pc(s)
Description
Surge protection module Features: - Overvoltage module class III according to IEC 61643-11 (Type 3, EN 61643-11) for sockets with protective conductor connection. - Installation by snapping on the carrier ring of the socket. - With acoustic signal for fault reporting. - Label to identify the socket. - Protects additional electrical outlets in the circuit, up to 5 m of cable length.
