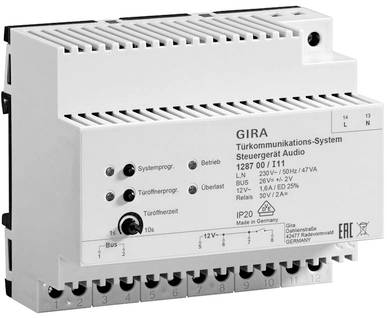

GIRA 128700 Controller
EAN:
Part number:
Item no:
Technical specifications
- Width in division units: 6
- Application: Other
- Output voltage 12 V
- Installation system: Bus system
- Input voltage: 230 V
- ACcurrent
- Integrated door opener circuit: Yes
- Control function: Yes
- Evaluation function: No.
- Service indicators: Yes
- Programming lock: No.
- Number of connectable subscribers: 70
- Product type
Controller
IP20
- Mounting type
DIN rail
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820936 GIRA 128700 Controller
Description
Audio features: - Computer for supplying the audio components of the GIRA door communication bus. - Supply of the reverse polarity protected and short-circuit resistant 2-wire bus. - Self-resetting electronic short circuit and overload detection of the operating voltages and the bus connection. - Buttons for system and door opener programming. - LED status indicators for operation, overload, system programming and door opener programming. - Output AC 12 V for power supply of a standard door opener. - Relay output for switching a door opener with its own power supply. - Door opener time continuously adjustable from 1 to 10 seconds. Notes: - The AUDIO control unit is intended for installation in the sub-distribution. If this is not possible, use commercially available surface-mounted distributor. - This component enables the construction of door communication systems with up to 70 participants (e.g. 1 x flush-mounted speakers, 5 x expansion modules for flush-mounted speakers, 68 x housing station AP).
