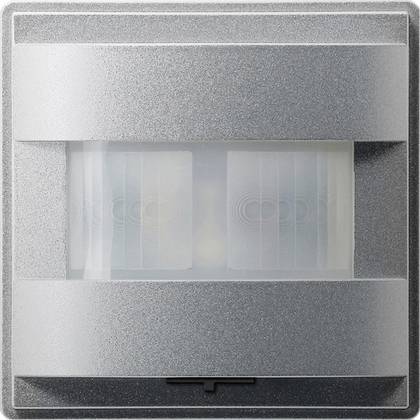

GIRA 204065 Flush mount Motion detector Aluminium
EAN:
Part number:
Item no:
Technical specifications
- KNX bus system: Yes
- KNX-RF bus system (radio): No.
- Bus system wireless bus: No.
- Bus system LON: No.
- Bus system Powernet: No.
- Other bus systems: Without
- With bus connection: No.
- Wireless bidirectional: No
- Material: Plastic
- Material quality: Thermoplastic
- Surface protection: Painted
- Transparent: No.
- Design: Motion detector
- Extension input: No.
- Low-level creep protection: No.
- Operating mode switch: No.
- Animal slope: No.
- Staircase lighting timer: Yes
- Response brightness adjustable: Yes
- Teach-Function for Response Brightness: No.
- Switch-off delay, self-learning: No.
- Optimum mounting height 1.1 m.
- Max. Range to one side: 6 m.
- Max. Range: Front 10 m
- Angle of coverage vertical 0..180°
- DALI-2 certified: No.
- Product type
Motion detector
- Mounting type
Flush mount
- Factory colour
Aluminium
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820948 GIRA 204065 Flush mount Motion detector Aluminium
Description
Motion detector attachment 1.10 m standard for KNX color Alu TX_44 Features: - Mounting on bus coupler 3. - Configurable for motion detection (application of monitor) or for room monitoring (application of detector). - Evaluation of brightness when motion is detected during the guard mode. Illumination is switched off when the brightness threshold is exceeded. - Configurable number of motion pulses within a monitoring time in alarm mode. - Motion detection takes place digitally over 2 PIR sectors. - Sensitivity of motion detection can be parameterized separately for the PIR sectors in steps. - Integrated brightness sensor for determining ambient brightness. - Adjustment of the sensitivity via a setting on the device. - Display of the motion detection (permanent or only in the walk test). - A function block can be configured. - Function block configurable for the "Monitor", "Switch-off brightness" or "Detector" application. - Two output communication objects are available to the function block via which the switching and control commands are sent to the KNX bus. - Configurable functions: Switching, staircase function, dimming sensor, scene extension, temperature sensor, Brightness sensor, operating mode changeover, switching with forced position. - Switching the operating mode (OFF / AUTO / ON) during operation by on-site operation or via communication object by on-site operation to other motion detectors for KNX via touch sensor for KNX or visualization. - In brightness-independent mode, the function block can determine the time period after a last motion and send it to the KNX bus via a communication object. This function allows, for example, Simple monitoring of personal movements in assisted living or in a residence for the elderly. - How motion detection works can be set for the application "guard" or "monitor with switch-off brightness". - The device can be used as a single device in the "guard" or "monitor with switch-off brightness" applications, as a main or extension. - Walk test function to assist with the configuration and setting of the PIR detection area. Notes: - Suitable for indoor use only. - The motion detector is not suitable for alarm messages in VdS-compliant alarm systems.
