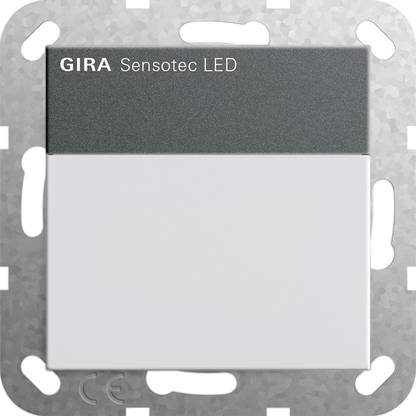

GIRA 237828 Flush mount Motion detector Anthracite
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Low-level creep protection: No.
- Animal slope: No.
- Staircase lighting timer: Yes
- Response brightness adjustable: Yes
- Teach-Function for Response Brightness: No.
- Max. Range to one side: 4 m.
- Max. Range: Front 6 m
- Network-compatible: No.
- Response sensitivity adjustable: Yes
- Dimming function with dimming element: No.
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With motion detector: Yes
- HVAC activation: No.
- Installation height 1.1 m
- Motion detector/button combination: No.
- With orientation light: No.
- Max. duty cycle 90 min
- Horizontal coverage angle: 0..50°
- Constant light control: No.
- Suitable for wireless transmission: No.
- Min Switch-on time 1 seconds
- Product type
Motion detector
- Mounting type
Flush mount
- Factory colour
Anthracite
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3821159 GIRA 237828 Flush mount Motion detector Anthracite
Description
Sensotec LED without remote control Anthracite Features: - Contactless switching prevents contamination. Contamination by viruses and bacteria by users is thus ruled out. - Near and far range detection depends on the reflection area, the speed and type of the object (person, animal, object, etc.). - Metal frames affect the detection range. - Extension of the detection area by extensions. - Extension operation with rocker switch. - Requires an IR remote control for commissioning and setting different functions. - Individual brightness value and follow-up time possible (teach function). - Remote sensing sensitivity is adjustable. - Mounting in deep connector box. - Meets the specifications of VDI / VDE 6008 sheet 3. - The Sensotec LED is an active motion sensor. It detects temperature-independent movements in the detection area and switches on the LED-orientation lamp depending upon the ambient brightness. - Motion in the near area switches, for example the room lighting on. - Switch-on brightness of the LED orientation lamp can be adjusted. Notes: - An IR remote control is required for commissioning and setting different functions.
