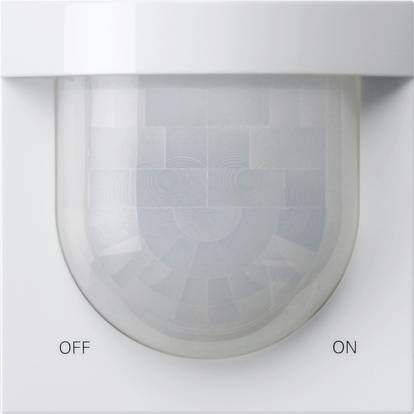

GIRA 5376112 Flush mount Motion detector attachment White
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP20
- Material: Plastic
- Material quality: Thermoplastic
- Low-level creep protection: No.
- Animal slope: No.
- Staircase lighting timer: Yes
- Response brightness adjustable: No.
- Max. Range to one side: 6 m.
- Max. Range: Front 12 m
- Network-compatible: No.
- Response sensitivity adjustable: Yes
- Dimming function with dimming insert: Yes
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- With motion detector: Yes
- HVAC activation: No.
- Installation height 2.2 m
- Motion detector/button combination: No.
- With orientation light: No.
- Max. duty cycle 30 min
- Horizontal coverage angle: 1..180°
- Constant light control: No.
- Suitable for wireless transmission: No.
- Min Switch-on time 10 seconds
- Product type
Motion detector attachment
- Mounting type
Flush mount
- Factory colour
White
- Similar RAL
9010
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3821089 GIRA 5376112 Flush mount Motion detector attachment White
Description
System 3000 motion detector attachment 2.20 m comfort BT pure white glossy surface switch Features: - Automatic switching of lighting, depending upon heat movement and ambient brightness. - Operation with System 3000 Switch, DIMM or Extension Insert 3-wire. - Extension of the detection area in combination with extension insert 3-wire. - When a System 3000 extension unit is connected to the main station with operator panel or mechanical button, the lighting can be switched on or dimmed for the duration of the follow-up time. - Manual switching between automatic mode, duration on and duration off on the device is possible. With System 3000 switch insert - short-term operation With System 3000 Dimming feature - switching on with the last set brightness or stored switching-on brightness. - The switch-on brightness can only be permanently stored via System 3000 extension unit with operator panel. - Basic light function. - Night light function. Functions with GIRA SYSTEM 3000 APP - Setting the brightness threshold - Sensitivity of the two sensors can be set individually (0, 25, 50, 75, 100 %). - Set the follow-up time. - Forced functions: Automatic mode, duration on/off, time limited on/off for 0.5 to 5 hours. - Presence simulation. - Switch-off pre-warning. - Day operation. - Walk test. - Time switch function. - Alarm function.
