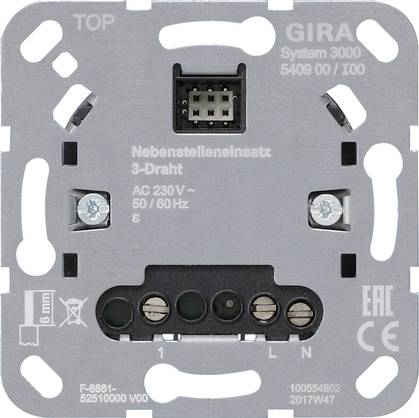

GIRA 540900 Extension insert
EAN:
Part number:
Item no:
Technical specifications
- Suitable for protection class (IP): IP20
- Material: Other
- Material quality: Other
- Surface protection: Other
- Transparent: No.
- Mounting type: Claw / screw attachment
- Extension input: No.
- Lastart: Universal and LED retrofit
- Max. Switching capacity LED 120 W
- Mains frequency: 50/60 Hz.
- Type of connection: Screw terminal
- Halogen-free: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Operating mode: Push button
- Assembly: Base element
- APP control via Bluetooth: No.
- Dimming of leading edge: Yes
- Dimming of phase section: Yes
- Series dimmer: No.
- Light value storage: Yes
- Can be used with button: No.
- Can be used with a motion detector: No.
- Can be used with presence detector: No.
- Can be used with timer/timer: No.
- Can be used with radio button: No.
- Can be used with IR key: No.
- Nominal power resistive load 20 W
- Nominal power inductive load 20 VA
- Nominal capacity 3 VA
- Product type
Extension insert
- Mounting type
Flush mount
- Nominal voltage
230 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820846 GIRA 540900 Extension insert
Description
System 3000 Extension insert 3-wire Features: - Extension operation of inserts with extension input from the system 3000. - Operation with suitable operating attachment from the system 3000. - Operation with neutral conductor connection. Combination with RF operating attachment 1-way/2-way for KNX sensor channel 1-way/2-way. - Radio control of other devices for KNX as a sensor is possible. - Temperature detection. - The 3-wire extension acts as a power supply for the RF operator attachment 1-way / 2-way for KNX. Notes: - Can function as a network-supplied transmitter in conjunction with KNX RF operator attachments and eNet operator attachments.
