EAN:
Part number:
Item no:
Technical specifications
- Material of housing: Brass
- Material quality: Brass, zinc-resistant (DZR)
- Nominal diameter: DN 50
- Connection 1: Inner thread (metric)
- With coupling connection 1: No.
- Connection 2: Inner thread (metric)
- With coupling connection 2: No.
- Connection 3: Inner thread (metric)
- Print level item: PN 40
- With coupling connection 3: No.
- Max. Operating pressure 10 bar
- Medium temperature (continuous operation): 5..100°C.
- Surface protection: Untreated
- Medically clean: No.
- Grease free: Yes
- Operation: Electric motor
- Seal: Ethylene propylene-Dien rubber (EPDM)
- Complete transmission: No.
- Ball bore L-bore
- Angle Page 1 - Page 2: 90 °
- Angle Page 1 - Page 3: 90 °
- Kvs-value: 39
- Suitable for heating: Yes
- Suitable for cooling: Yes
- Product type
Changeover valve
- Material
Brass
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3159803 Glen Dimplex 374800 374800 Changeover valve
Description

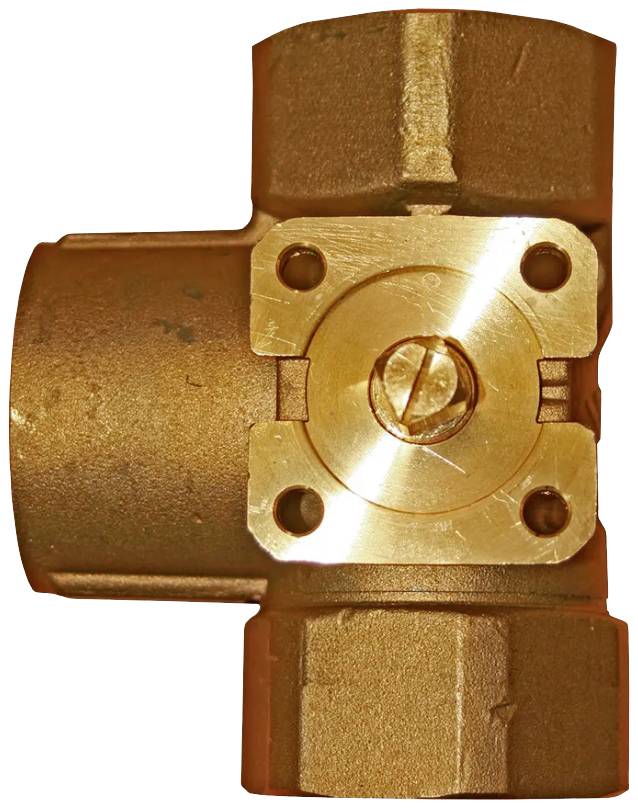

3-way ball valve with L-bore for use in closed circuits of heating, refrigeration and air conditioning systems. Application for switching, e.g. for the return heating in passive cooling, from heating to hot-water heater or from heating to cooling. Ball valve made of brass with internal thread connections. Functional accessories: Actuator EMA DWV.
