Technical specifications
- Design: With internal float
- Material of pump housing: Plastic
- Material quality of pump housing: Other
- Electrical connection: Cable
- Cable length: 2 m
- Rated voltage 220..240 V
- Number of phases: 1
- Frequency: 50 Hz
- Max. pumping height 22 m
- Reservoir volume: 0.1 l
- Max. Pump volume 11 l/h
- Max. Suction height 2 m
- Nominal current 10 A
- Medium temperature (continuous operation): 4..40°C.
- Surrounding temperature 0 to .50 °C
- Diameter, inlet side connection: 20..32 mm
- Diameter, outlet side connection: 20..32 mm
- With drain hose: Yes
- With granulate grains: No.
- Suitable for wall mounting: No.
- Suitable for floor mounting: No.
- Acoustic alarm: Yes
- Product type
Condensate pump
- Content
1 pc(s)
- Type
With internal float
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3158867 Glen Dimplex 381760 Condensate pump
Description

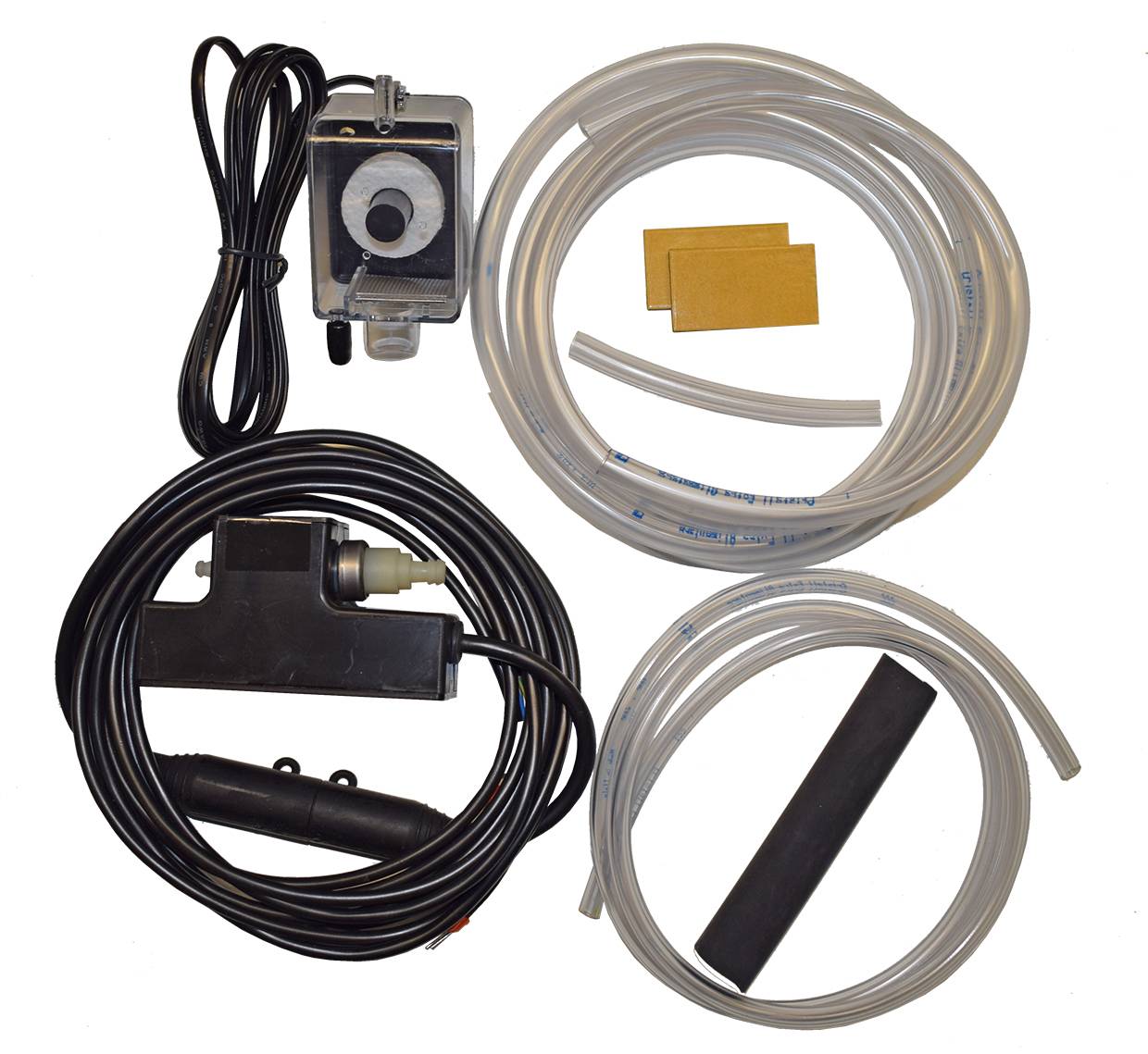

Self-regulating condensate pump for M Flex AIR (plus).
