Name: Gossen Metrawatt METRAHIT CAL Pack Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standa
Brand: Gossen Metrawatt
SKU: 1625585

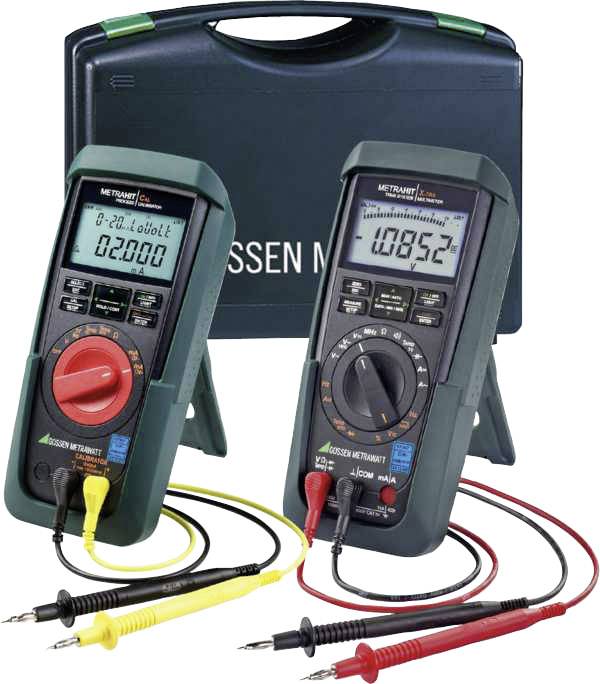

Two multimeters with measuring cables are standing in front of an open briefcase. The displays show '02000' and '0852'.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Kalibrier-Set with calibrator and Multimeter

Technical specifications

Product type: Handheld multimeter

Measurement type (details): True RMS

: DAkkS standards

Voltage metering: AC/DC

Current reading: AC/DC

Type: METRAHIT CAL Pack

Display: Digital

Display (counts): 12000

Features: Conforms wth DAkkS standards

UKCA: not relevant

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Voltage DC reading range (max.)

A DC reading range (max.)

Calibrated to

Reading category

Current reading

Measurement type (details)

V AC reading range (max.)

Gossen Metrawatt METRAHIT PM XTRA Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V Display (counts): 60000

Item no:1625762

Available soon

Conrad Electronic

10 A

1000 V

10 A

DAkkS standards

CAT IV 600 V

AC/DC

True RMS

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,239.00^*

Gossen Metrawatt AERO Master Test Kit II Handheld multimeter Calibrated to (DAkkS standards) Digital Splashproof (IP54), Data logger CAT II 1000 V, CAT III 600 V Display (counts): 30000

Item no:1625792

Unavailable

Conrad Electronic

10 A

1000 V

10 A

DAkkS standards

CAT II 1000 V

AC/DC

True RMS

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt METRAHIT AM PRO + GH Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V Display (counts): 12000

Item no:1625565

Unavailable

Conrad Electronic

16 A

1000 V

16 A

DAkkS standards

CAT IV 600 V

AC/DC

True RMS

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt METRAHIT AM TECH + GH Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT IV 600 V, CAT III 1000 V Display (counts): 12000

Item no:1625759

Unavailable

7 Piece(s)Conrad Electronic

10 A

1000 V

10 A

DAkkS standards

CAT IV 600 V

AC/DC

True RMS

1000 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt METRAHIT ENERGY DC Power Set Handheld multimeter Calibrated to (DAkkS standards) Digital Data logger CAT IV 300 V

Item no:1625919

Unavailable

Conrad Electronic

10 A

600 V

1250 A

DAkkS standards

CAT IV 300 V

AC/DC

True RMS

600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt METRAHit 2A Handheld multimeter Analogue

Item no:1625627

Unavailable

Conrad Electronic

15 A

500 V

15 A

Manufacturer's standards (no certificate)

True RMS

500 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt METRAmax 2 Handheld multimeter Analogue

Item no:1625751

Unavailable

Conrad Electronic

3 A

300 V

3 A

Manufacturer's standards (no certificate)

AC/DC

300 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Gossen Metrawatt SECULIFE HIT AM Handheld multimeter Calibrated to (DAkkS standards) Conforms wth DAkkS standards CAT IV 300 V

Item no:1625879

Unavailable

Conrad Electronic

10 A

DAkkS standards

CAT IV 300 V

AC/DC

True RMS

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 1625585 Gossen Metrawatt METRAHIT CAL Pack Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standa

User & Safety Instructions

User & Safety Instructions 1625585 Gossen Metrawatt METRAHIT CAL Pack Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standa

Description

The calibrator METRAHIT CAL serves as exact calibration and simulating device for electrical screens
With the multimeter METRAHIT ON THE XTRA, you can check the same calibrated sizes
Product Highlights
Multipurpose calibration source for mV, V and mA signals. Simulation of thermal voltages at different thermocouple types for specified temperatures (F) as well as resistance values for different Pt and Ni-Temperatursensoren.
Frequency and pulse generator for testing at SPS, counting devices for energy, flow, etc. The generated square pulse in the amplitude can be adjusted and as the simulation of sensor pulses to be used.
Your advantages
Measuring transducer with a variety of input signals (voltage, thermal stress, RTD and 2-conductor remote resistance sensor, etc.) can be directly connected and calibrated. By using a multimeter (e.g. METRAHIT X-TRA), the corresponding measurement values on the instrument transformer output measured, if necessary through an adapter to a PC, there using the optional software METRAwin 90 represented and with the respective calibration requirements are compared.
The setpoint and actual values are displayed or printed as a certificate. In the position "mA-sink" simulates the METRAHIT CAL a two-wire transmitter and draws from the measuring chain the selected current value.
Technical Merkmale
Both devices are supplied as standard with DAkkS calibration certificate.
Properties of the calibrator METRAHIT CAL.
Properties of the multimeter METRAHIT XTRA.

This text is machine translated.

Scope of delivery

1 Calibrator METRAHIT CAL with 2 batteries, IEC LR6 including accessories:
1 pair safety test leads (yellow and black) (1.5 m) with 4-mm probes, 1000 V CAT III, 600 V CAT IV
1 Short operating instructions
1 CD-ROM, contains: User Manual in German and English
1 Rubber protective cover
1 DAkkS Calibration Certificate
1 Multimeter METRAHIT AT THE X-TRA including accessories:
1 pair safety test leads (1.5 m) with 4-mm probes, 1000 V CAT III, 600 V CAT IV (KS17-2)
2x batteries 1.5 V, AA
1x short operating instructions in German/English
1x CD-ROM, contains: User Manual in German and English
1 x DAkkS Calibration Certificate
1 x rubber protective cover
1 hard shell case HC30
