GUDE 8045-1 Socket Energy consumption metering Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

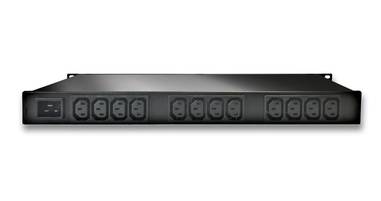

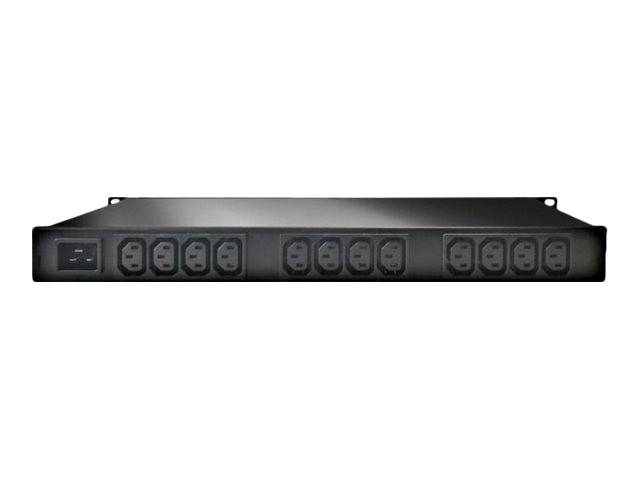

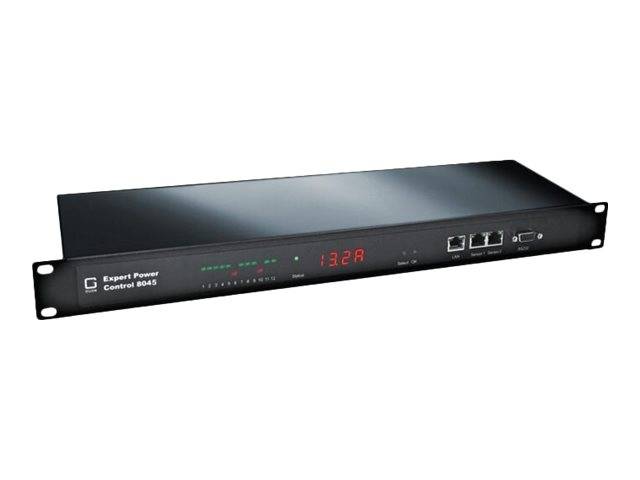

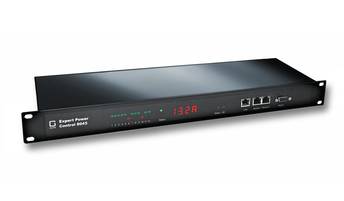

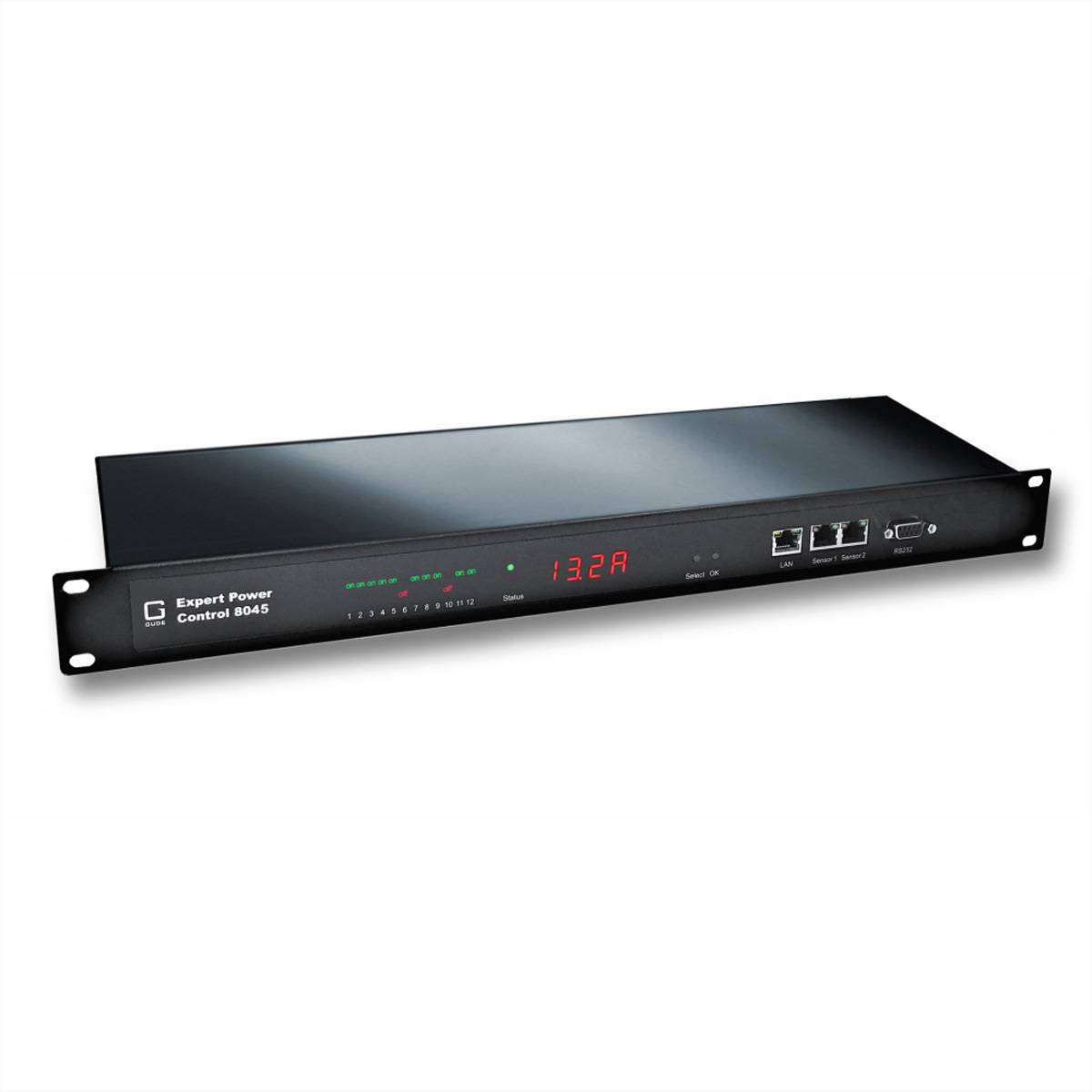

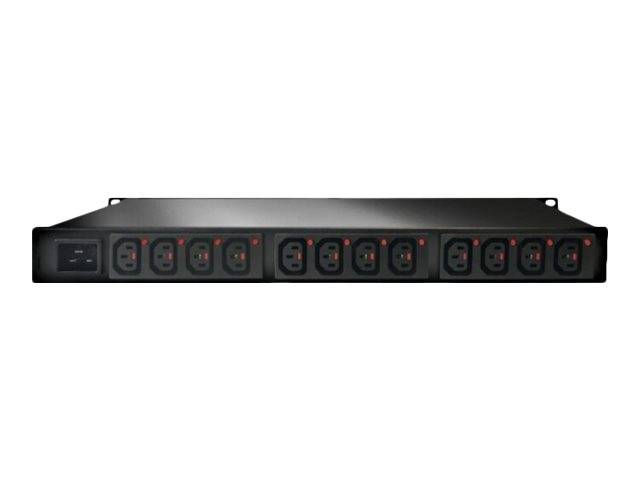

Güde 8045-1 Power Distribution Unit (PDU) 12 AC Outputs 1U Black
- Meter, Modified 1U Black
- LED
- 12 AC-outputs C13-coupler
Technical specifications
- Rack capacity: 1U
- Number of AC outputs: 12 AC outputs
- Product type
Socket
- Light bulb features
Energy consumption metering
- Outlets
12
- Mounting type
Rack
- Factory colour
Black
- Dim
(L x W x H) 195 x 438 x 44 mm
- Length
195 mm
- Width
438 mm
- Height
44 mm
- Depth
178 mm
- Type
Expert Power control 8045-1
- Content
1 pc(s)
- Material
Metal
- Surge protection for
Mains outlets
- Plug type
C13 connector
- Load (max.)
16 A
- Operating voltage
230 V AC
- 10/100/1000 Mbps ports
1 x
- Power rating
3600 W
- Type
Other installation technique
- Weight
2.2 kg
- UKCA
yes
- Operating temperature (T-T)
0 - 50 °C
- Serial ports quantity
1
- Manual
yes
- Firmware upgradeable
yes
- Operating relative humidity (H-H)
0 - 95 %
- Storage temperature (T-T)
-20 - 70 °C
Documents & Downloads
Datasheet
Datasheet 3797271 GUDE 8045-1 Socket Energy consumption metering Black
User & Safety Instructions
User & Safety Instructions 3797271 GUDE 8045-1 Socket Energy consumption metering Black
Description
12-way switched and outlet-metered PDU for increasing the operational safety and energy efficiency in IT networks
Expert Power control 8045-2 prevents the IEC lock terminals from unintentional disconnection of the cable through a patented locking mechanism (IEC lock). These Power ports are each switched separately via a web interface, via the serial interface, via SNMP or the button on the device. It supports SNMPv3, SSL and IPv6, as well as Telnet, Radius and Modbus TCP. The Expert Power control 8045 series switched and outlet-metered PDUs have two built-in energy counters per load output. The measurement of a large number of electrical variables makes it possible for the user to recognize and exploit power saving potentials in the IT environment at the device level. In addition, the operator receives warning messages when fault currents occur (differential current measurement type A). This allows preventive maintenance before downtime occurs.
This text is machine translated.
Features
- Switching and controlling servers and IT devices in the server room and data center
- Switch network or media technology devices by media controls of well-known AV manufacturers
- (Atlanta, Barco, Crestron, Extron, Neets)
- Remotely restart PCs, servers, routers, and switches
- Reduce the power consumption of standby devices through schedule control
- Network monitoring through integration with monitoring software (PRTG, Icinga, Nagios, Power IQ, Tivoli)
- Environment monitoring by connected sensors (temperature, humidity and air pressure)
Scope of delivery
- Expert Power control 8045-1, connection cable (protective ground contact - IEC C19), quick start guide
