GUDE 8314-1 Socket Black
EAN:
Part number:
Item no:
Highlights & Details
8-way switched PDU for reducing power consumption, for remote maintenance and for surrounding monitoring
- United Kingdom design
- Input side power measurement
- 2 sensor connections, differential current measurement
- Integrated surge protection type 3 (SPD)
- HTTPS, SSL, IPv6, SNMPv3, Telnet, Radius, Modbus TCP
Technical specifications
- Product group: Socket strips
- Product type: IP Power switch
- Colour, black
- Function: Remote switching via IP
- 19" rack mount option
- Max. load carrying capacity 3600W
- Max. voltage 230V
- On/off switch: Yes
- Switch type IP
- Number of socket pots: 8
- Number of outputs/angle: 8 / straight

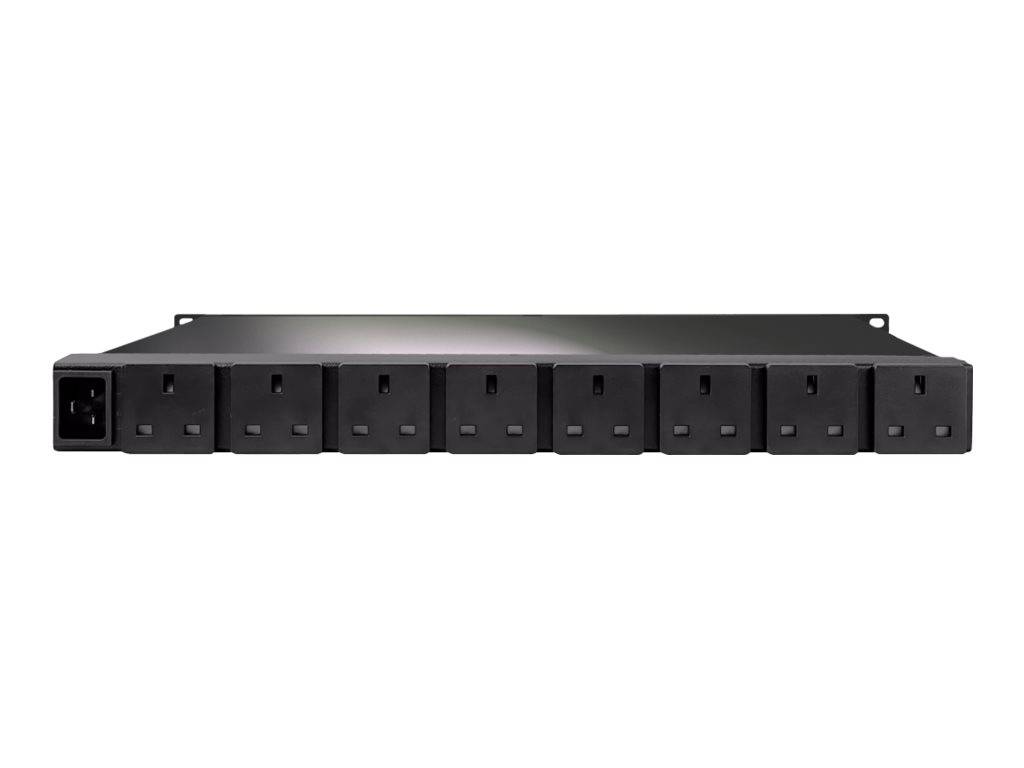

- Outputs arrangement: Straight, rear side
- Dimensions (HxWxD) 44 x 439 x 178 mm
- Material (casing): Metal
- Colour (housing): Black
- Connection cable IEC320 C20, cold devices
- Connection plug 8 x BS1363
- Technical features: --
- Height: 44 mm
- Width 439 mm
- Depth: 178 mm
- Weighs 2.3 kg.
- Packaging height 80 mm
- Package width 90 mm
- Packaging depth 250 mm
- Package weight: 0.5 kg
- Gross weight: 0.5
- Current catalog edition: 22.1
- Current catalog page: 0
- Product type
Socket
- Outlets
8
- Factory colour
Black
- Content
1 pc(s)
- Weight
3.941
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3797328 GUDE 8314-1 Socket Black
Description
8-way switched PDU for reducing power consumption, for remote maintenance and for environmental monitoring With the new IP switch sockets the power consumption of the installation can be effectively reduced: The collective switching of. Consumers, even in the standby mode, as well as the integrated energy counters help to operate the infrastructure. In addition, the operator receives warning messages when fault currents occur. This allows preventive maintenance before downtime occurs. The PDUs have 8 load outputs BS1363 (UK) on the rear. This allows the connected devices to be switched off and on in the event of a fault. This is also possible via media controls and DCIM solutions. Defined thresholds also ensure that event-based switching operations can be initiated. Two integrated sensor connections for optionally available sensors permit the monitoring of ambient temperature, air humidity and air pressure. System-critical states are thus made early. detected. Thanks to the hot-plug sensors the setup is done quickly with the Expert Power control series.
This text is machine translated.
Scope of delivery
- Expert Power control,connection cable (BS1363 - IEC C19
