H1 Solutions 1020 LED escape route lighting Right, Left, Down
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
LED escape route lighting H1 Solutions Unlimited L AT 3H 1020 ()
- Emergency sign lamp
- Universal mounting
- Colour: white
Technical specifications
- Input voltage/frequency 220 – 240 V/AC/50/60 Hz
- Autonomy time 3 hr
- LiFePO4 battery
- Max. Output AC 10.9 VA
- Max. Capacity DC 3 W
- Nominal bulb power 2.43 W.
- Ambient temperature: 0 °C ... +40 °C).
- Polycarbonate housing material
- Impact strength: IK04
- Battery voltage 6.4 V
- Battery capacity: 0.6A h
- Housing color (RAL): 9016
- Max. Cable cross-section: 1.5 mm²
- Light color 5,700 K lamp
- Expected LED life (h): 50,000
- Colour rendering index (Ra): >80
- Dim
(W x H x D) 330 x 248 x 45 mm
- Product type
LED escape route lighting
- Main battery supply
No
- Type
Right
Left
Down
- Backlit
Yes
- Operating voltage
230 V AC
- Detection range
30 m
- Weight
1.35 kg
2.43 W
- Bulb type
LED (monochrome)
- Material
Polycarbonate (PC)
- Width
330 mm
- Height
248 mm
- Depth
45 mm
IK04
IP40
- Protection class
II
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3220146 H1 Solutions 1020 LED escape route lighting Right, Left, Down
User & Safety Instructions
User & Safety Instructions 3220146 H1 Solutions 1020 LED escape route lighting Right, Left, Down
Description

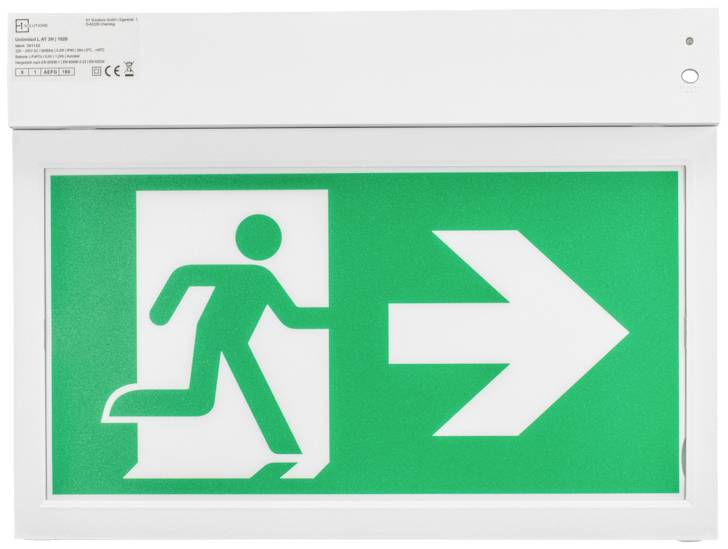

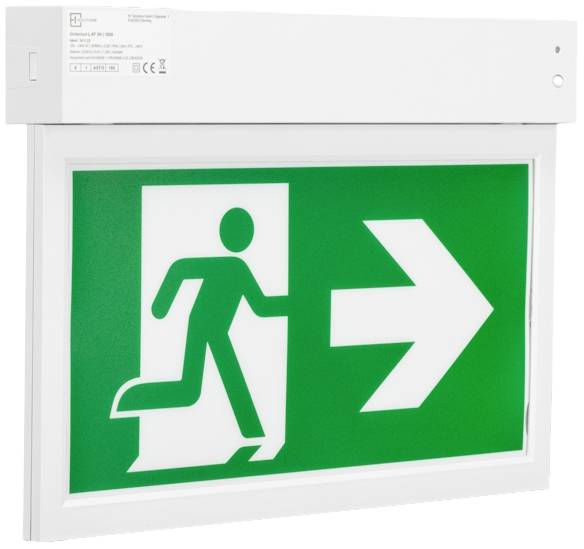

Rescue signal lamp Unlimited L AT 3H - the powerful all-rounder
Modern, inconspicuous and aesthetic rescue sign lamp Unlimited, in polycarbonate casing in traffic white, RAL 9016. Thanks to universal mounting, without additional accessories, can be mounted on wall or ceiling. You determine (even on site) where the lamp is to be mounted. Lamp module that can be snapped into place without tools, complete with all electrical operating and lighting bulbs, for fast and simple installation.
Illuminant (LED) light color, activating in biorhythms 5,700 K.
Particularly homogeneous, standardized illumination of the pictograms through light-technical optimized pictogram disc (500 cd/m²). The pictogram set (below, right, left), for one-or two-sided escape-route marking, belongs to the standard-package contents.
The lamp regularly and automatically checks for function by the integrated autotest component.
Robust, long-lasting and rechargeable LiFePO4 battery for use even at high ambient temperatures. Discharge at almost constant voltage and low self-discharge.
This text is machine translated.
Features
- Lamp type: Single battery
- Mounting type: Universal
- Test equipment: Autotest
- Operating mode: Continuous/standby mode.
Scope of delivery

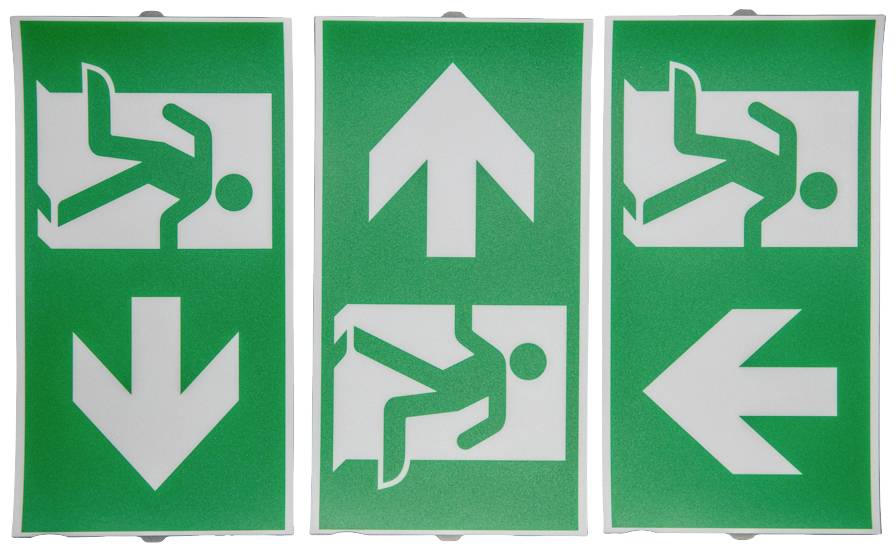

- With 6 bits. Pictogram set (right, left, bottom).
Hints
Safety relevant component - Only by skilled workers.
