H1 Solutions 1054 Safety light EEC A (A - G) Ceiling recess-mount
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Safety light H1 Solutions Hidden Zigbee 3H 1054 (Ceiling recess-mount)
- Small and inconspicuous installation housing
- ZigBee
- Ceiling installation mounting
- Colour: white
Technical specifications
- Input voltage/frequency 220 – 240 V/AC/50/60 Hz
- Autonomy time 3 hr
- LiFePO4 battery
- Max. Output AC 7.1 VA
- Max. Power DC 4.1 W,
- Nominal bulb power 3.15 W.
- Ambient temperature: 0 °C ... +45 °C
- Housing material: Polycarbonate | aluminum alloy
- Impact strength: IK04
- Battery voltage 6.4 V
- Battery capacity 3.2 Ah
- Housing color (RAL): 9016
- Max. Cable cross-section: 2.5 mm²
- Luminous flux Mains operation 400 lm
- Emergency light output: 400 lm
- Light color 5,000 K lamp
- Expected LED life (h): 50,000
- Colour rendering index (Ra): >70
- Dim
(Ø) 80 mm
- Product type
Safety light
- Main battery supply
No
- Backlit
Yes
- Operating voltage
230 V AC
- Recess depth
34 mm
- Weight
0.52 kg
3.15 W
- Bulb type
LED (monochrome)
- Mounting type
Ceiling recess-mount
- (Ø)
80 mm
IK04
IP20
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3220159 H1 Solutions 1054 Safety light EEC A (A - G) Ceiling recess-mount
User & Safety Instructions
User & Safety Instructions 3220159 H1 Solutions 1054 Safety light EEC A (A - G) Ceiling recess-mount
Description
Safety light Hidden Zigbee 3H -
Because they don't know she's there

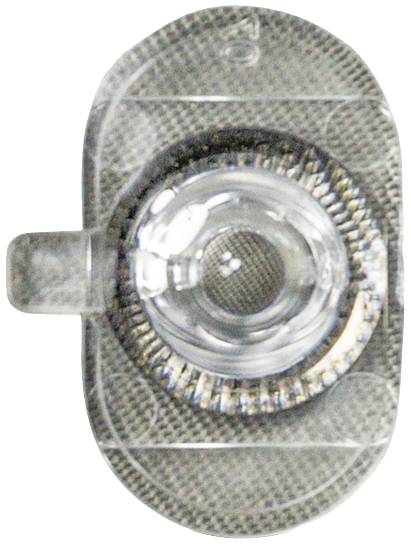

Normally almost invisible, 100% on the spot when needed - hide your safety lighting with Hidden! The small and inconspicuous mounting housing allows the lamp to be integrated effortlessly in your ceiling. The illuminant (LED) is specified, in the evening sun reflecting, the concentration promoting light color 5,000 K. Including easily replaceable high-tech lenses for a choice of surface or escape route lighting. Through an optimized heat management the lamp will remain surprisingly "cool" even at high loads.

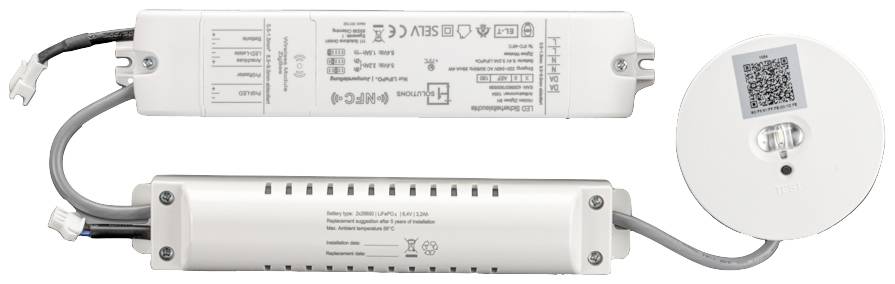

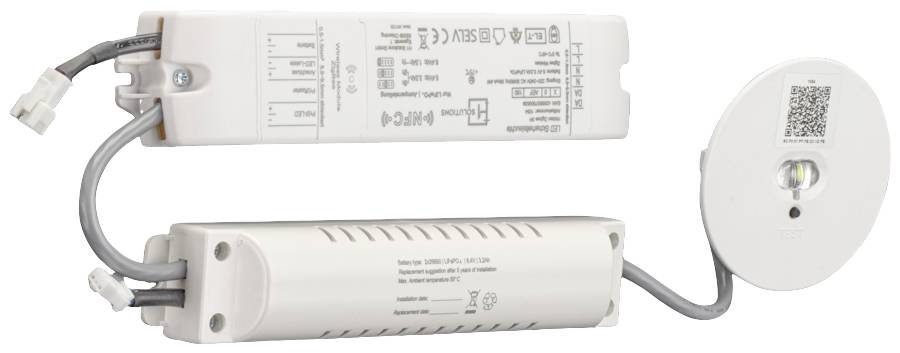

Complete with all electrical operating and lighting elements for quick and easy installation.
Wireless (radio) monitoring and control via open source standard (Zigbee).
Robust, long-lasting and rechargeable LiFePO4 battery for use even at high ambient temperatures. Discharge at almost constant voltage and low self-discharge.
This text is machine translated.
Features
- Lamp type: Single battery
- Mounting type: Ceiling mounting
- Test device: Zigbee
- Operating mode: Standby mode.
Scope of delivery
- With 6 bits. Surface/path lens (symmetric/asymmetric).
Hints
Safety relevant component - Only by skilled workers.
