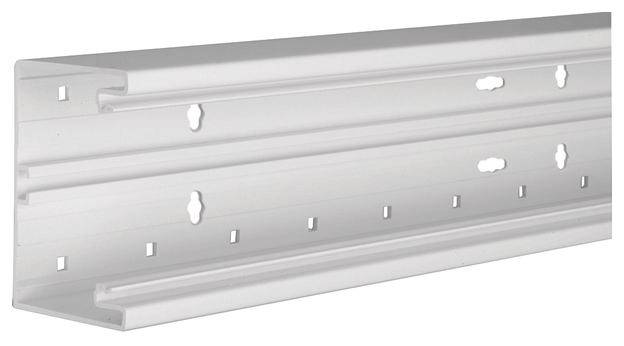

Hager BR6510017035 Trunking Bottom part (L x W) 2000 mm x 100 mm 2 m Grey
EAN:
Part number:
Item no:
Technical specifications
- Product type
Trunking
- Component
Bottom part
- Content
2 m
- Factory colour
Grey

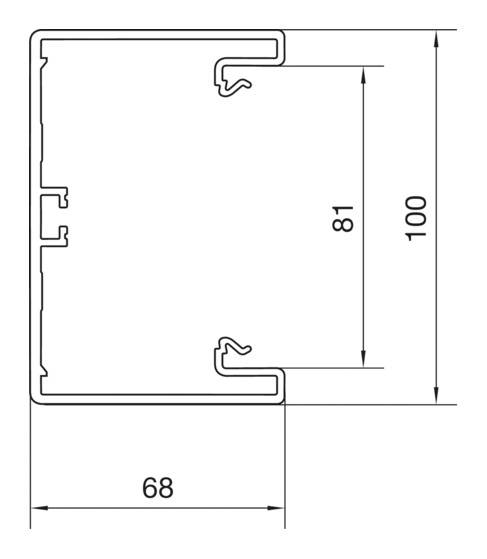

- Dim
(L x W) 2000 mm x 100 mm
- Length
2000 mm
- Width
100 mm
- Depth
68 mm
Grey
100
FALSE
68 mm
7035
Untreated
Polyvinyl chloride (PVC)
2000 m
Plastic
Inner lying
1
1
TRUE
FALSE
TRUE
5750 mm²
80 mm
0
0
TRUE
TRUE
Continuous C-profile
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2815331 Hager BR6510017035 Trunking Bottom part (L x W) 2000 mm x 100 mm 2 m Grey
Description
Dado trunking base PVC front latch BR 68x100mm top part 80mm in light gray. Channel lower part for the electrical installation channel system Dado trunking made of plastic according to DIN EN 50085-1 as a device mounting channel with upper section 80 or 120 mm for installing commercially available devices with or without additional panels. With mounting holes (universal drill tolerance compensation) for direct wall mounting and additional rectangular holes for tool-free attachment of channel on consoles by means of clip technology. With front locking, tool-free equipment installation for the attachment of devices and equipment installation sockets with quick mounting Additional C-profile as installation option. Couplers available for simple and custom-fit duct mounting, dividers and cable retention clips as accessories. Note: Sound and fire protection measures must be carried out in a professional manner.
