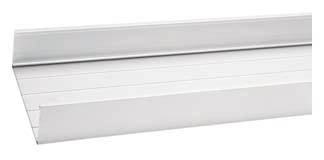

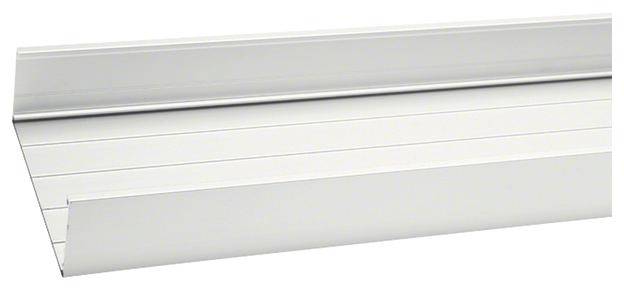

Hager DABA5016019016 Ceiling mounting rail (L x W x H) 3000 x 160 x 50 mm 2 m Traffic white

Ceiling connection rail profile Aluminium length 3M to DABA 50x160mm Traffic white. Ceiling connection cable run for cable routing consisting of a rectangular base profile of 58 x 160 mm with cable usable surface 44.5 cm². Usable cable load with trailer support width 1.5 m to 20 kg or with support width 1.0 m to 23 kg. Couplings suitable for easy installation of the ceiling connection path, height-adjustable ceiling suspensions, shaped parts (flat angles, T-piece), holder set as well as adapters for ceiling connection pillars available. Notes: Ceiling-connection tracks are to be mounted quickly 2-fold (distance 55 mm). Take note of the usable cable/cable load (load test is carried out according to EN 61537). Earthing measures must be carried out professionally.
