Name: Hager FWKP10015009016 Fire rated cable trunking Wiring duct (L x W x H) 2000 x 100 x 150 mm 2 m
Brand: Hager
SKU: 3357880

Metallic cable trunking with a rectangular cross-section, open end to the right and a mounting element in the centre. Suitable for cable management.

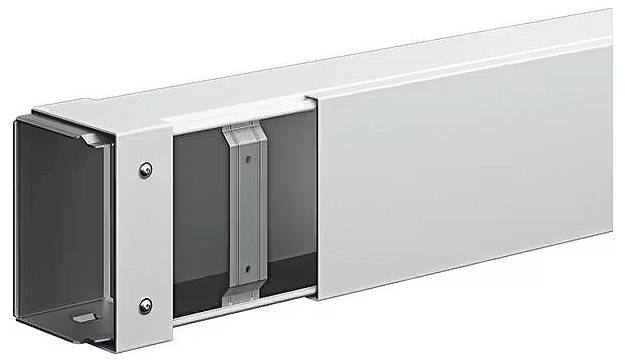

Part of a cable trunking system, showing the interior with fixing elements. White material, suitable for cable routing within buildings.

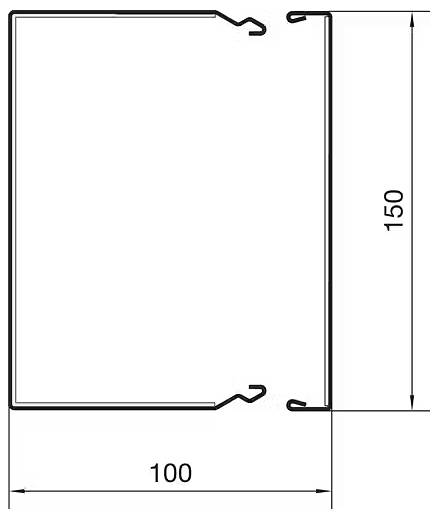

Technical drawing of a rectangular sheet metal piece with hooks at the corners. Dimensions: 100 mm width, 150 mm height.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Fire rated cable trunking

Component: Wiring duct

Content: 2 m

Dim: (L x W x H) 2000 x 100 x 150 mm

Length: 2000 mm

Width: 100 mm

Height: 150 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3357880 Hager FWKP10015009016 Fire rated cable trunking Wiring duct (L x W x H) 2000 x 100 x 150 mm 2 m

User & Safety Instructions

User & Safety Instructions 3357880 Hager FWKP10015009016 Fire rated cable trunking Wiring duct (L x W x H) 2000 x 100 x 150 mm 2 m

Description

Fire protection channel FWK-Plus 100x150mm white powder-coated.Fire-resistant cable guide channel FWK-Plus classifies EI 90 as per EN 13501-2 for protecting the escape and rescue routes, fire load insulation. Channel lower part with snap-on channel upper part. With performance declaration, suitability for use and CE-labeling according to EAD and European approval ETA.

This text is machine translated.
