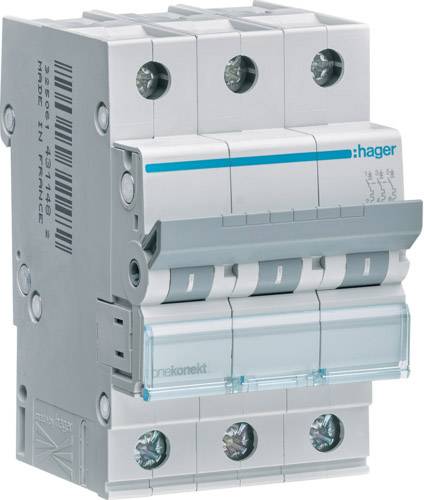

Hager MCN325 MCN325 Circuit breaker 1-phase 25 A 230 V, 400 V
Product type
Circuit breaker
Number of pins
3
Release characteristics
C
Nominal current - rounded value
25 A
Nominal current
25 A
EAN:
Part number:
Item no:
Number
Total (€ 65.99 / piece)
€ 65.99
incl. VAT
14-day return policy included
Highlights & Details
Line safety switch 3-pin
- Rated operating voltage Ue 230/400 V
- Nominal current 25 A
- Trigger characteristic C
Technical specifications
- Product type
Circuit breaker
- Number of pins
3
- Release characteristics
C
- Nominal current - rounded value
25 A
- Nominal current
25 A
- Factory colour
Grey
- Dim
(L x W x H) 150 cm x 50 mm x 100 mm
- Content
1 pc(s)
- Model
1-phase
- Switch-off capacity
6 kA
- Operating voltage
230 - 400 V
- Nominal voltage
230 V
400 V
- Width
50 mm
- Height
100 mm
- Length
150 cm
- Depth
73 mm
- Weight
0
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1845539 Hager MCN325 MCN325 Circuit breaker 1-phase 25 A 230 V, 400 V
Description
Line circuit breaker in accordance with DIN VDE 0641 part 11/8 .92, accidental contact protection IP2x according to DIN VDE 0106 Part 100 with VDE. LS with time delayed thermal release for overload protection and electromagnetic trigger for short-circuit protection. Suitable for subsequent installation of additional facilities. Labelling option directly on the device and individual removal from the phase rail network by unlocking the top-hat rail mounting rapidly.
This text is machine translated.
This text is machine translated.
Features
- According to IEC 60898-1 Icn AC 6kA Breaking Capacity
- Pola number 3P
- Insulation voltage 500 V
- Surge voltage resistance: 4000 V
- Mains frequency: 50/60 Hz.
- Connection type screw-in type
- Torque: 2.8Nm
- Total power loss under rated current 10.1 W
- Device life, electrical switching Games 4000
- Device life mechanical switching cycles 20000
