Hammond Electronics 1590WTRPC Casing 152 x 95 x 38 Aluminium, Steel Aluminium (natural) 1 pc(s)
Product type
Casing
Material
Aluminium
Steel
IP rating
IP65
Width
95 mm
Height
38 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

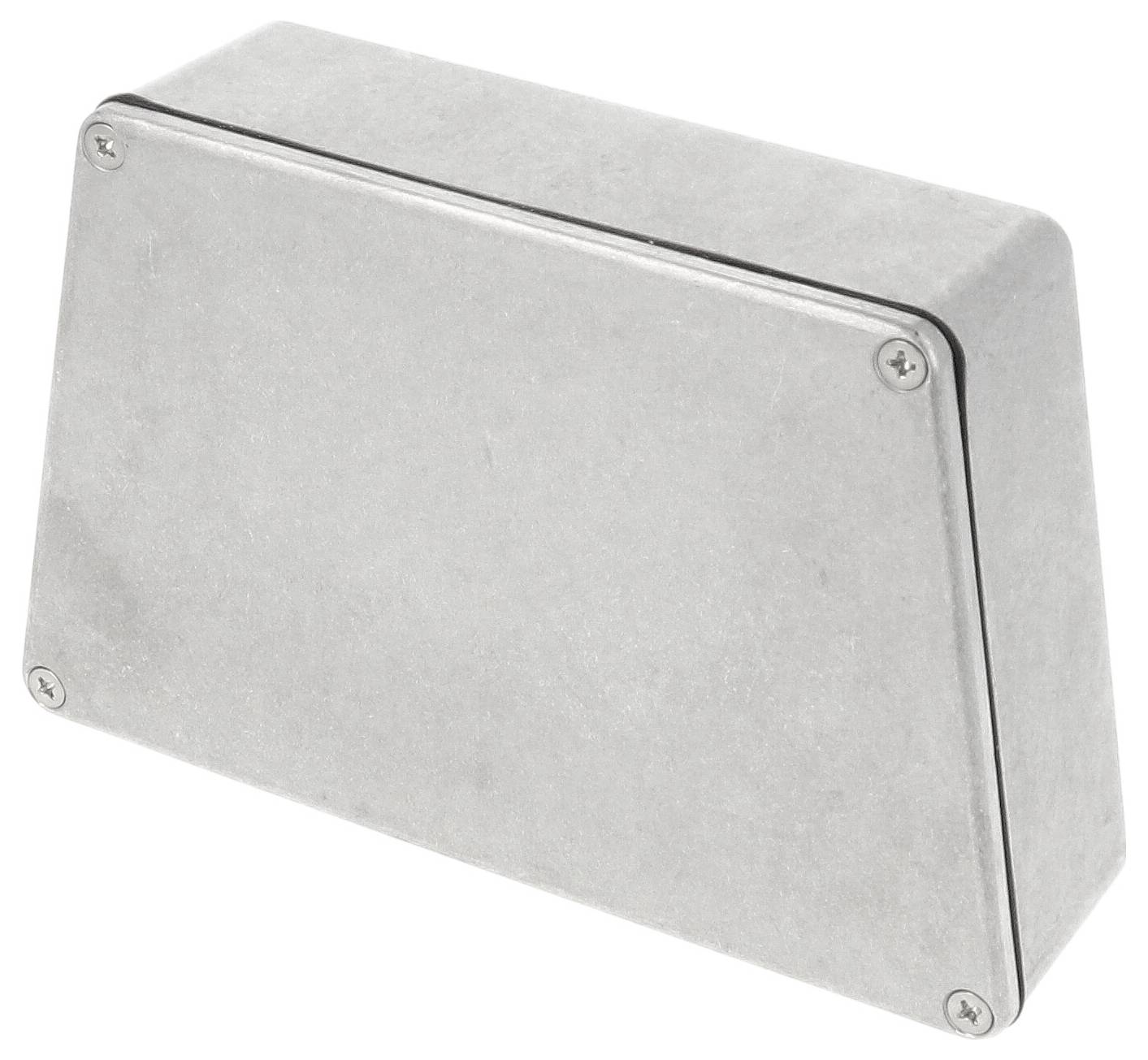

Waterproof diecast housing, trapezoidal
- Robust housing for electronic instruments made of die-cast aluminum.
- Aluminium is robust yet easy to work.
- The overlapping design protects against dust and splash water and provides improved EMI/RFI shielding.
- The unpainted version is equipped with a vibration treatment that offers a smooth surface without sharp edges.
- Our most popular application is the use as Stompbox. More colors and traditional shapes can be found in our Stompbox series 1590.
- Four machine screws (#6-32 x 1/2") secure the cover in factory pre-assembled threaded holes.
- Conforms IP54.
- Low side wall angle (maximum 2°) for simple PCB mounting.
- This text is machine translated.
Our service for you
Technical specifications
- Product type
Casing
- Features
waterproof
Trapezoid
- Material
Aluminium
Steel
IP65
- Factory colour
Aluminium (natural)
- Length
152 mm
- Width
95 mm
- Height
38 mm
- Content
1 pc(s)
- Dim
(L x W x H) 152 x 95 x 38 mm
- RoHS-compliant
Yes
- Weight
0.24 kg
- Type
1590WTRPC
