Handle Grey Siemens 8UD17712CF01

A blue Siemens switch with red and green indicator lamps, showing operational states 'ON' and 'OFF'.

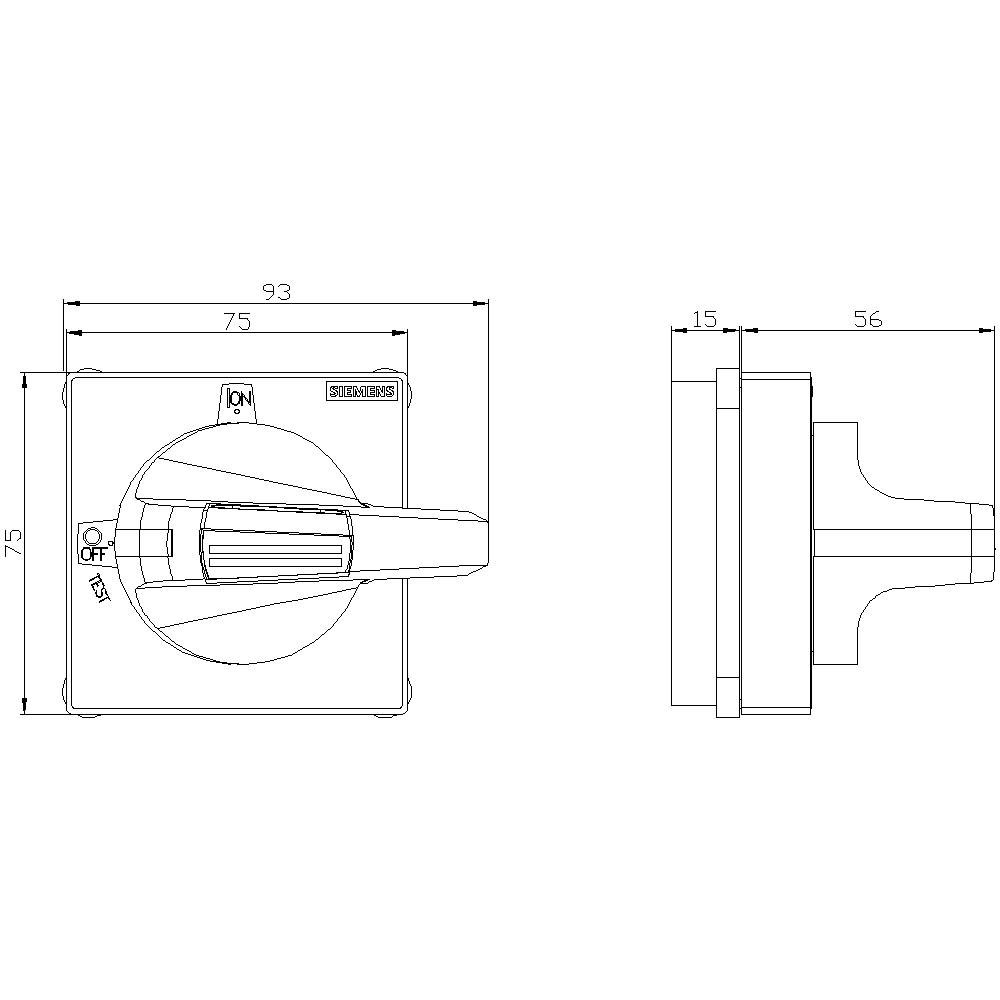

Technical drawing of a switch. Left front view with dimensions, right side view. Labelled with 'ON' and 'OFF'.
1/2
Product type
Handle
Compatible with (details)
3KD size 1 and 2
3KF size 1
Factory colour
Grey
Dim
(W x H x D) 84 x 84 x 80 mm
Type
Handle with screen
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 104.99 / piece)
€ 104.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • IP65 rating
  • Door locking system design: Door locking
  • Net weight 140 g
Product type

Handle

Compatible with (details)

3KD size 1 and 2

3KF size 1

Factory colour

Grey

Dim

(W x H x D) 84 x 84 x 80 mm

Type

Handle with screen

Width

84 mm

Height

84 mm

Depth

80 mm

Documents & Downloads

Datasheet

Datasheet 1738372 Handle Grey Siemens 8UD17712CF01

User & Safety Instructions

User & Safety Instructions 1738372 Handle Grey Siemens 8UD17712CF01

Description

Handle with masking frame standard with tolerance compensation Accessory for: 3VA1/2 1000
