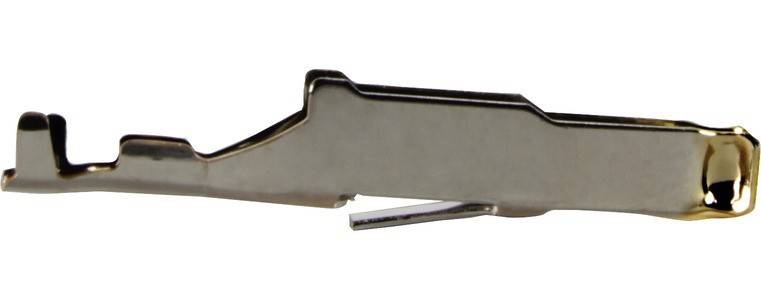

HARTING 09 06 000 8482 Crimp contact Total number of pins 1 1000 pc(s)
Product type
Crimp contact
Total no. of pins
1
Connector type
Socket
Content
1000 pc(s)
Nominal current
6 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Clip connector - Type F
- Content 1000 pc(s)
Technical specifications
- Type F
- Product type
Crimp contact
- Total no. of pins
1
- Connector type
Socket
- Nominal current
6 A
- Nominal current - rounded value
6 A
- DIN standard
D
E
F
MH24+7
FM
2F
F9
- Connection
Crimp
- Factory colour
Grey
- Case material
PA
- Manufacturer part #
09 06 000 8482
- Content
1000 pc(s)
- Contact material
Copper alloy
- Width
20.2 mm
- Height
3.63 mm
- Length
2.4 mm
- Max. temperature
+125 °C
- Min. temperature
-55 °C
- Type
09 06 000 8482
20 - 16
- Dim
(L x W x H) 2.4 x 20.2 x 3.63 mm
- Certification marks
DIN 41612
- Number of pins
1
- Cross section
0.5 -1.5 mm mm²
- Contact surface
Gold plated
- Material (details)
PBTB to UL 94VO standard
- Nominal current (details)
-
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1327734 HARTING 09 06 000 8482 Crimp contact Total number of pins 1 1000 pc(s)
User & Safety Instructions
User & Safety Instructions 1327734 HARTING 09 06 000 8482 Crimp contact Total number of pins 1 1000 pc(s)
Description
Single contact for spring pin in design F.
