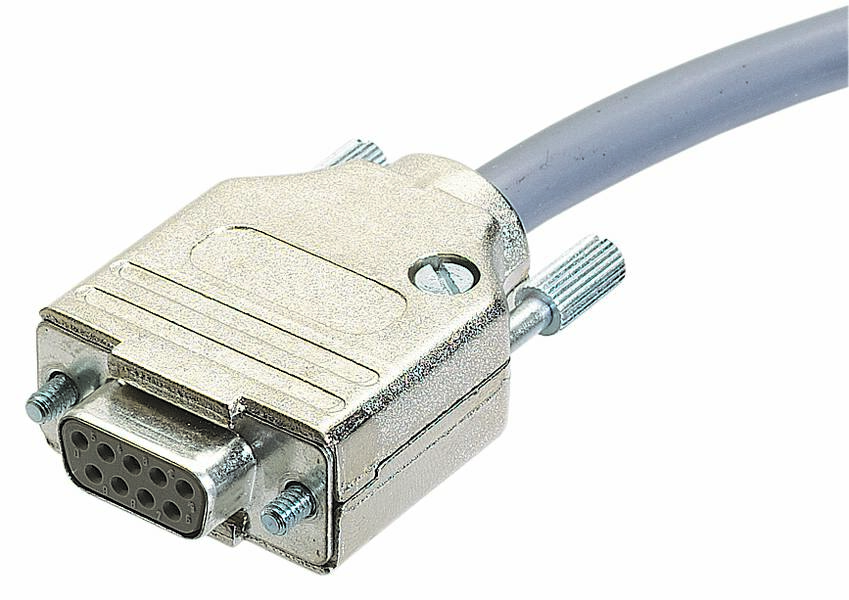

HARTING 09 67 025 0348 09670250348 Shell Metal 1 pc(s)
Product type
Shell
Case material
Metal
Content
1 pc(s)
Manufacturer part #
09670250348
Cable Ø (max.)
10.2 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Shell housing
- Metal
Technical specifications
- Locking type: Knurled screw thread M3
- Net weight: 67.32 g
- Housing description: Cover can be screwed down
- Tightening torque: 0,4 Nm cap screw;0,4 Nm locking screw
- Size D-Sub 3
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- D-Sub case series
- Material housing: Metal
- Cable diameter: 4 ... 10.2 mm
- Length: 48.5 mm.
- Width 53.5 mm
- Height: 1.8" (14.8 mm)
- 2-part: yes
- divisible: yes
- Ambient temperature: -40 ... +120 °C
- Cable fixing: Cable sleeve
- Product type
Shell
- Case material
Metal
- Content
1 pc(s)
- Manufacturer part #
09670250348
- Cable Ø (max.)
10.2 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 10.2 mm
- Width
53.5 mm
- Height
14.8 mm
- Length
48.5 mm
- Features
+ metal enclosure
- Type
09 67 025 0348
Screw
Straight
FALSE
Metal
FALSE
Documents & Downloads
Datasheet
Datasheet 3003824 HARTING 09 67 025 0348 09670250348 Shell Metal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003824 HARTING 09 67 025 0348 09670250348 Shell Metal 1 pc(s)
Description
Shell housing, screw-in cover, size: D-Sub 3, knurled screw thread M3, straight cable input, 1x, material housing: metal
