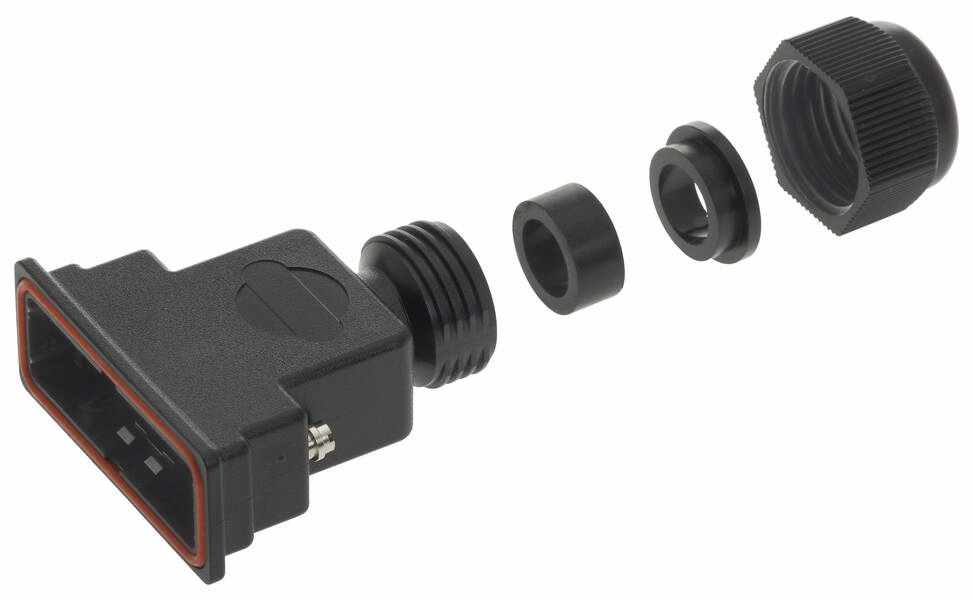

HARTING 09 67 037 0438 09670370438 Shell Plastic 1 pc(s) Piece
Packaging type
Piece
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670370438
EAN:
Part number:
Item no:
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Locking type: Locking screw Thread 4-40 UNC
- Net weight: 33.6 g
- Protection class according to IEC 60529:IP67
- Housing description: With integrated cable gland
- Tightening torque: 0,4 Nm locking screw;0,4 Nm cable clamping screw
- Size D-Sub 4
- Housing type: Shell housing
- Design: Straight cable input
- Cable input 1x
- Housing series D-Sub IP67
- Material housing: Plastic
- Colour of housing: Black
- Cable diameter: 10.5 ... 12 mm
- Length: 75 mm
- Width 78.6 mm
- Height: 24 mm
- 2-part: no.
- divisible: no.
- Ambient temperature: -35 ... +120 °C
- Cable fixing: Cable clamp;cable screwing
- Packaging type
Piece
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670370438
- Cable Ø (max.)
12 mm
- Cable Ø up to
10.5 mm
- Cable Ø range
10.5 - 12 mm
- Width
78.6 mm
- Height
24 mm
- Length
75 mm
- Features
+ cable gland
- Type
09 67 037 0438
IP67
Screw
Straight
FALSE
Plastic
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3003862 HARTING 09 67 037 0438 09670370438 Shell Plastic 1 pc(s) Piece
Description
Shell housing, with integrated cable gland, size: D-Sub 4, locking screw thread 4-40 UNC, straight cable input, 1x
