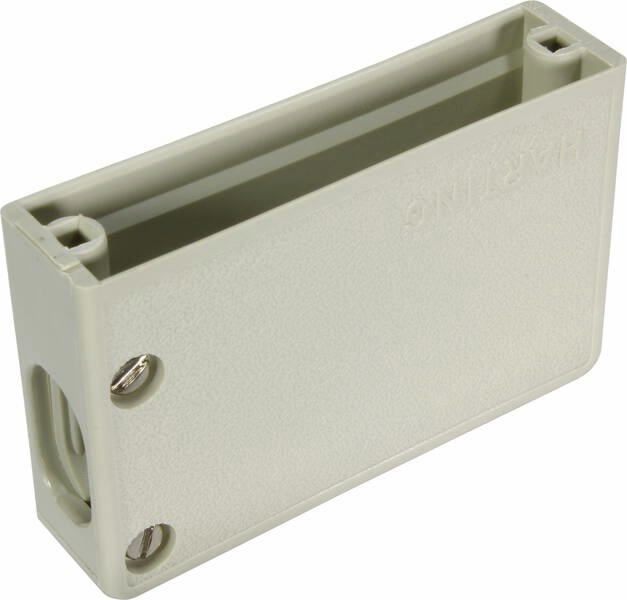

HARTING 09 67 037 0511 09670370511 Shell Plastic 1 pc(s)
Product type
Shell
Case material
Plastic
Content
1 pc(s)
Manufacturer part #
09670370511
Cable Ø (max.)
9 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Shell housing
- Plastic
Technical specifications
- Type of lock: Lever or slide lock
- Net weight: 24.55 g
- Notes: Can be aligned in 3 TE (15.24 mm) grid
- Tightening torque: 0,25 Nm cable clamping screw;0,4 Nm fixing screws
- Size D-Sub 4
- Housing type: Shell housing
- Design: Side cable input
- Cable input 1x
- D-Sub case series
- Material housing: Plastic
- Colour housing: Grey
- Cable diameter: 5.75 ... 9 mm
- Length: 69.7 mm
- Width 12.8 mm
- Height: 43 mm
- 2-part: yes
- divisible: yes
- Ambient temperature: -55 ... +120 °C
- Cable fixing: Cable clip
- Product type
Shell
- Case material
Plastic
- Content
1 pc(s)
- Manufacturer part #
09670370511
- Cable Ø (max.)
9 mm
- Cable Ø up to
5.75 mm
- Cable Ø range
5.75 - 9 mm
- Width
12.8 mm
- Height
43 mm
- Length
69.7 mm
- Features
+ locking mechanism
- Type
09 67 037 0511
Slide
Angled
FALSE
Plastic
FALSE
Documents & Downloads
Datasheet
Datasheet 3003690 HARTING 09 67 037 0511 09670370511 Shell Plastic 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003690 HARTING 09 67 037 0511 09670370511 Shell Plastic 1 pc(s)
Description
Shell housing, size: D-Sub 4, lever or slide lock, lateral cable input, 1x, Material housing: plastic, gray
