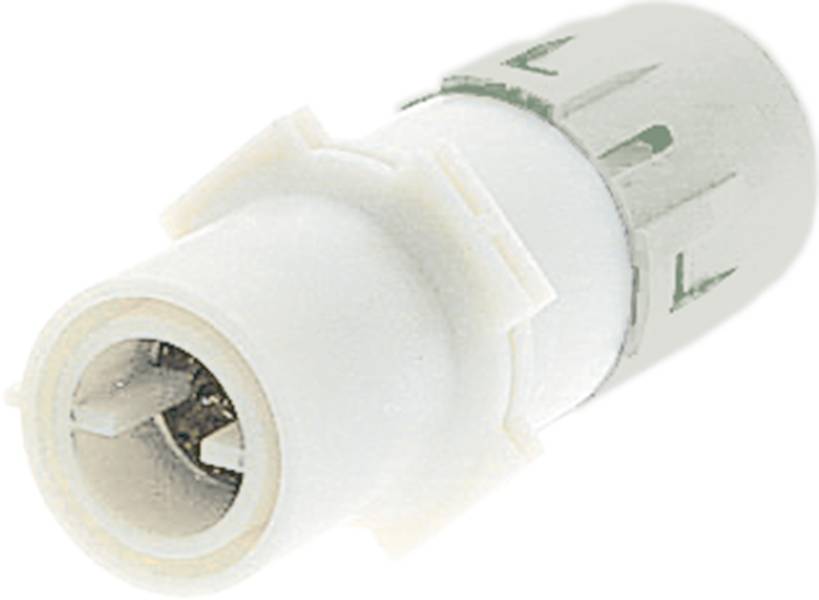

HARTING 09110012770 Pin inset Axial screw terminal 1 pc(s)
Product type
Pin inset
Connection
Axial screw terminal
Core cross section (min.)
60 mm²
Core cross section (max.)
70 mm²
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: HAN® HC Modular
- Connection type: Axial screw connection
- Rated current 650 A
- Insulation resistance >1010 Ω
- Continuous resistance ≤ 0.2 mΩ
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC);polyamide (PA)
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Silver-plated contact surface
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 317 g
- Designation: 650
- Rated voltage: 4,000 V
- Dimensioning surge voltage: 18 kV
- Pollution level 3
- Notes: Vibration and shock resistance can only be maintained if the cables are intercepted at a suitable distance. For information about the distances between cable catches, see the section Instructions in the document in the eCatalogue.
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Conductor cross-section: 60 ... 70 mm².
- Stripping length: 23 ... 25 mm
- Vibration resistance: Category 1B according to IEC 61373
- Approvals DNV GL
- Shock resistance category 1B to IEC 61373
- Wire outside diameter: ≤26.5 mm
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Connection
Axial screw terminal
- Core cross section (min.)
60 mm²
- Core cross section (max.)
70 mm²
- Mating cycles
500
- Series
Han® HC Modular
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
4000 V
FALSE
Bus
-40-125 °C
V0
18 kV
Axial screw connection
Silver
3
FALSE
60-70 mm²
60-70 mm²
Other copper alloys
Thermoplastic
650 A
Thermoplastic
500
Documents & Downloads
Datasheet
Datasheet 3007740 HARTING 09110012770 Pin inset Axial screw terminal 1 pc(s)
Datasheet 3007740 HARTING 09110012770 Pin inset Axial screw terminal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007740 HARTING 09110012770 Pin inset Axial screw terminal 1 pc(s)
Description
Inserts, axial screw connection, socket, polycarbonate (PC), polyamide (PA), RAL 7032 (pebble gray), rated current 650 A.
