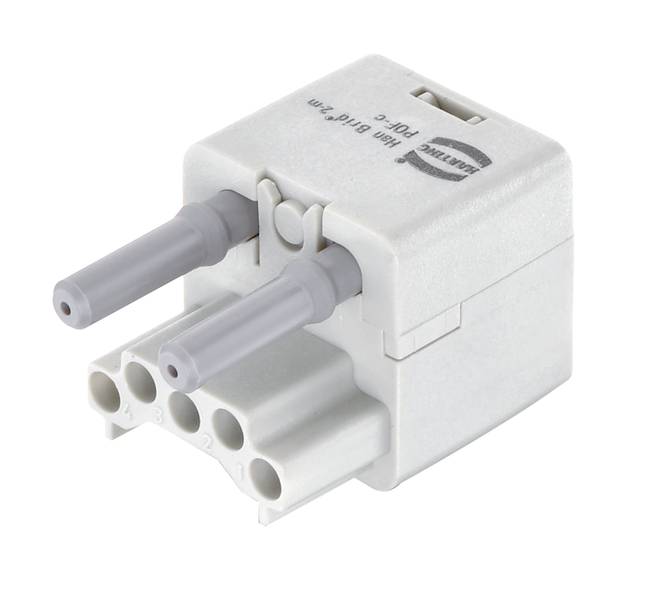

HARTING 09120042716 Pin inset 2 Socket 1 pc(s)
Product type
Pin inset
Connection
Socket
Total no. of pins
2
Factory colour
Pebble grey (RAL 7032)
Number of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: Han-Brid®
- Number of contacts: 2
- Rated current 10 A
- Insulation resistance >1010 Ω
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- IEC 61984 standard
- Net weight: 9.24 g
- Name: Han-Brid® fiber optic cable
- Rated voltage: 50 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Notes: Cable side;fiber optic cable sti + HAN D® BU;for HCS® fiber
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Jack
- Description: Hybrid fieldbus connector
- Additional contacts: + 4 electrical contacts 10 A + option for PE
- Design size 3 A
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Connection
Socket
- Number of pins
2
- Total no. of pins
2
- Mating cycles
≥ 500
- Series
Han-Brid®
- Content
1 pc(s)
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Optional
50 V
FALSE
2
Bus
-40-70 °C
V0
0.8 kV
Other
Other
3
FALSE
Other
Thermoplastic
10 A
Thermoplastic
500
2
Documents & Downloads
Datasheet
Datasheet 3007758 HARTING 09120042716 Pin inset 2 Socket 1 pc(s)
Datasheet 3007758 HARTING 09120042716 Pin inset 2 Socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007758 HARTING 09120042716 Pin inset 2 Socket 1 pc(s)
Description
Inserts, socket, polycarbonate (PC), RAL 7032 (pebble gray), rated current 10 A, Design size 3 A
