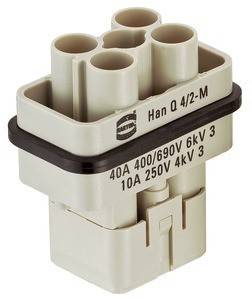

HARTING 09120063041 Pin inset Han® Q 4 + 2 + PE Crimp 10 pc(s)
Product type
Pin inset
Series
Han® Q
Connection
Crimp
Total no. of pins
4 + 2 + PE
Factory colour
Grey
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Industrial connector series Han ® Q4/2 - inserts
- Manufacturer Type Description: Han Q4/2 M-C
- Han-Compact ®
Technical specifications
- Product type
Pin inset
- Factory colour
Grey
- Series
Han® Q
- Connection
Crimp
- Number of pins
4
2
- Total no. of pins
4 + 2 + PE
- Mating cycles
≥ 500
- Size
Han-Compact ®
- Rated voltage
690 V
- Test current
40 A
- Content
10 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1327971 HARTING 09120063041 Pin inset Han® Q 4 + 2 + PE Crimp 10 pc(s)
User & Safety Instructions
User & Safety Instructions 1327971 HARTING 09120063041 Pin inset Han® Q 4 + 2 + PE Crimp 10 pc(s)
Description
Heavy industrial connectors for the toughest requirements in automotive, machine and plant engineering.
4 Power Contacts Han ® C as well as 2 Signal Contact Han ® D.
This text is machine translated.
4 Power Contacts Han ® C as well as 2 Signal Contact Han ® D.
This text is machine translated.
Hints
Suitable crimp contacts must be ordered separately!
