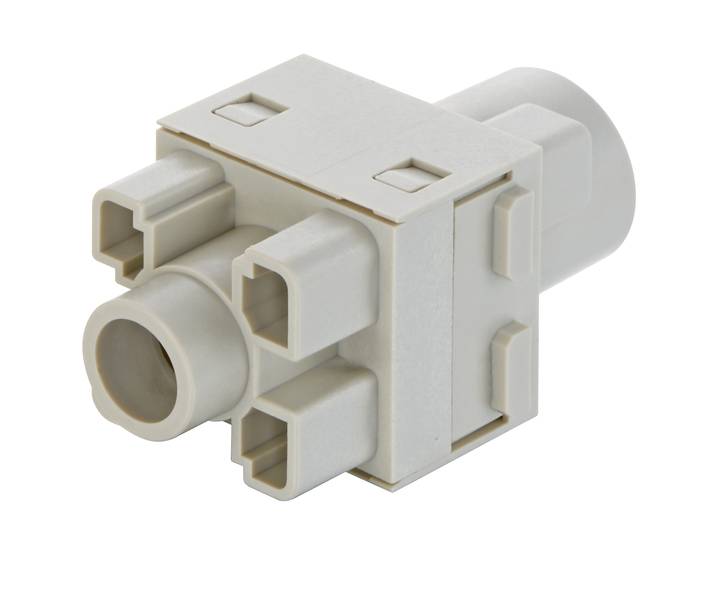

HARTING 09140013103 Connector 1 Crimp 1 pc(s)
Product type
Connector
Connection
Crimp
Total no. of pins
1
Core cross section (min.)
16 mm²
Core cross section (max.)
70 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Connector
- Factory colour
Pebble grey (RAL 7032)
- Features
no wire
- Connection
Crimp
- Number of pins
1
- Total no. of pins
1
- Core cross section (min.)
16 mm²
- Core cross section (max.)
70 mm²
- Mating cycles
500
- Series
Han-Modular®
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
1000 V
FALSE
1
Bus
-40-125 °C
V0
8 kV
Crimp connection
Other
3
TRUE
16-70 mm²
16-70 mm²
Other
Thermoplastic
200 A
Thermoplastic
500
1
- UKCA
yes
