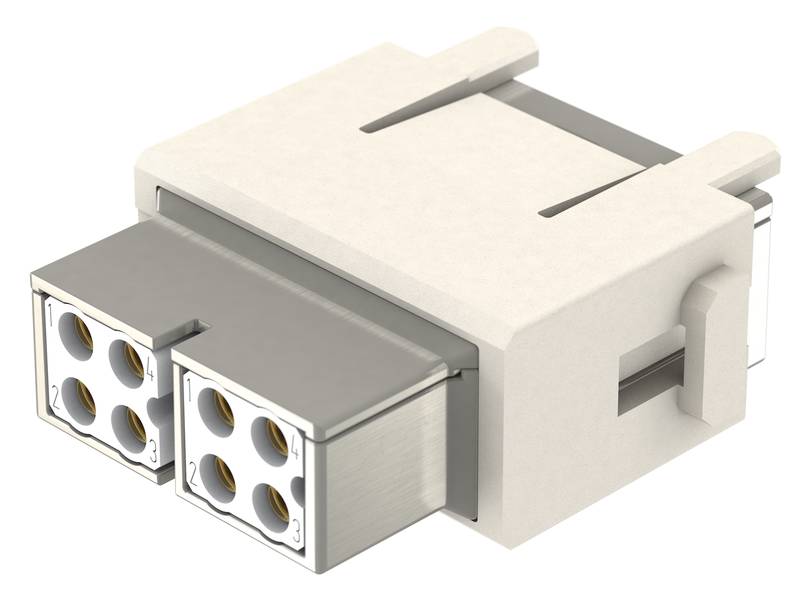

HARTING 09140083142 Pin inset 8 Quick-connect 1 pc(s) Piece
Packaging type
Piece
Product type
Pin inset
Connection
Quick-connect
Total no. of pins
8
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Connection type: Quick connection
- Number of contacts: 8
- Rated current 10 A
- Temperature limit: -40 ... +85 °C
- Mating cycles ≥ 500
- Material application: Polycarbonate (PC)
- Colour use: RAL 7032 (pebble gray)
- Material flammability class acc. To UL 94: V-0
- STANDARDS: IEC 60664-1; IEC 61984; EN 50467
- Net weight: 22.3 g
- Rated voltage: 50 V
- Dimensioning surge voltage: 0.8 kV
- Pollution level 3
- Notes: With additional shielding connection to hinged frame
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Data rate 100 Mbit/s.
- Gender: Jack
- Description: HAN® Megabit application; 2x 4 contacts
- Further contacts: + shielding
- Transmission features: Cat. 5 class D to 100 MHz
- Material shielding: Zinc die-cast, nickel-plated
- Constant resistance, shielding: ≤ 100 mΩ
- Packaging type
Piece
- Product type
Pin inset
- Factory colour
Pebble grey (RAL 7032)
- Features
+ shielding
- Connection
Quick-connect
- Number of pins
8
- Total no. of pins
8
- Mating cycles
≥ 500
- Series
Han® Megabit Einsatz
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
50 V
FALSE
8
Bus
-40-85 °C
V0
0.8 kV
Other
Other
3
FALSE
Other
Thermoplastic
10 A
Thermoplastic
500
8
Documents & Downloads
Datasheet
Datasheet 3011270 HARTING 09140083142 Pin inset 8 Quick-connect 1 pc(s) Piece
Datasheet 3011270 HARTING 09140083142 Pin inset 8 Quick-connect 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3011270 HARTING 09140083142 Pin inset 8 Quick-connect 1 pc(s) Piece
Description
Quick connection, socket, contacts: 8 + shielding, rated current: 10 A, polycarbonate (PC), RAL 7032 (pebble gray)
