HARTING 09140084720 Connector Han® A 8 Cut & Clip connector 1 pc(s)
Product type
Connector
Series
Han® A
Connection
Cut & Clip connector
Total no. of pins
8
Number of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Component: Data connector
- Connection type: PreLink® insulation displacement connection
- Number of contacts: 8
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 500
- Material application: Polyamide (PA)
- Material flammability class acc. To UL 94: V-0
- Standards IEC 60664-1; IEC 61984
- Net weight: 15 g
- Data rate: 10 Mbit/s; 100 Mbit/s; 1 Gbit/s; 2.5 Gbit/s; 5 Gbit/s; 10 Gbit/s
- Gender: Jack
- Conductor cross-section: AWG 23 ... AWG 22

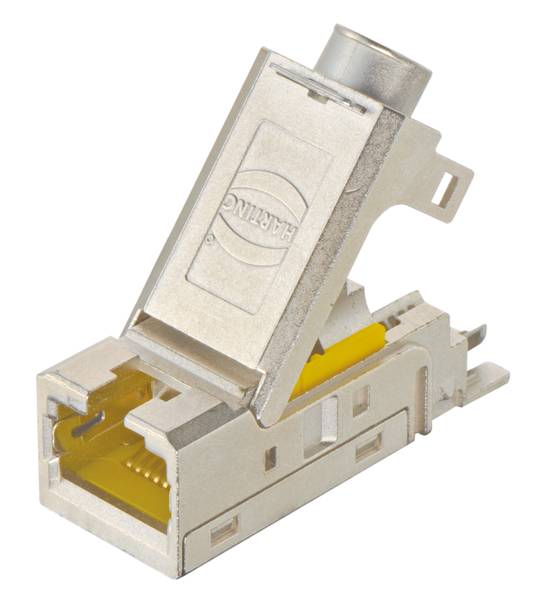

- Description: HAN® RJ45 cable socket
- Transmission features: Cat. 6A class EA to 500 MHz
- Material shielding: Zinc die-cast, nickel-plated
- Approvals DNV GL
- Wire outer diameter: 1.3 ... 1.6 mm
- Cable diameter: 5 ... 9 mm
- Product type
Connector
- Series
Han® A
- Connection
Cut & Clip connector
- Number of pins
8
- Total no. of pins
8
- Mating cycles
500
- Content
1 pc(s)
- Max. temperature
70 °C
- Min. temperature
-40 °C
FALSE
8
Bus
-40-70 °C
V0
Insulation displacement connection
Other
FALSE
Other
Thermoplastic
Thermoplastic
500
8
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3008855 HARTING 09140084720 Connector Han® A 8 Cut & Clip connector 1 pc(s)
Datasheet 3008855 HARTING 09140084720 Connector Han® A 8 Cut & Clip connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3008855 HARTING 09140084720 Connector Han® A 8 Cut & Clip connector 1 pc(s)
Description
PreLink insulation displacement connector, socket, contacts: 8, Polyamide (PA)
