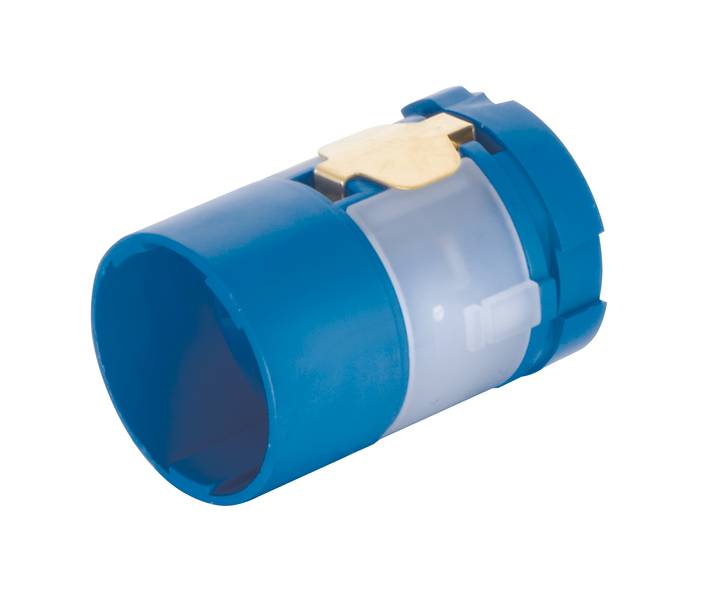

HARTING 09156063001 M23 inset Total number of pins: 6 + PE 1 pc(s)
Product type
M23 inset
Total no. of pins
6 + PE
Connection
Crimp
Content
1 pc(s)
Type
09 15 606 3001
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: Round plug connector M23
- Component: Inserts
- Connection type: Crimp connection
- Number of contacts: 6
- Rated current 28 A
- Insulation resistance >1013 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Test voltage Ueff 4 kV
- Material application: Polyamide (PA)
- Colour insert: Blue
- Material flammability class acc. To UL 94: V-0
- Net weight: 7.66 g
- Designation: Power
- Number of power contacts: 5
- Rated voltage: 600 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Note: Please order crimp contacts separately.;6x 2 mm
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.75 ... 4 mm².
- Further contacts: PE contact
- Type
09 15 606 3001
- Product type
M23 inset
- Total no. of pins
6 + PE
- Connection
Crimp
- Factory colour
Blue
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Weight
7.66 g
- Manufacturer part #
09156063001
- Insulation material
Polyamide
- Number of pins
6
- max. cross section
4 mm²
- Min. cross section
0.75 mm²
- Cross-section range
0.75 - 4 mm²
600 V
6
Pin
-40-125 °C
V0
4 kV
Crimp connection
Other
0.75-4 mm²
0.75-4 mm²
FALSE
Polyamide (PA)
Other
Thermoplastic
28 A
Plastic
500
Documents & Downloads
Datasheet
Datasheet 3007847 HARTING 09156063001 M23 inset Total number of pins: 6 + PE 1 pc(s)
Datasheet 3007847 HARTING 09156063001 M23 inset Total number of pins: 6 + PE 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007847 HARTING 09156063001 M23 inset Total number of pins: 6 + PE 1 pc(s)
Description
Inserts, Crimp connection, Pin, Polyamide (PA), Blue, Rated current: 28 A, contacts: 6 PE contact, wire cross section: 0.75...4 mm²
