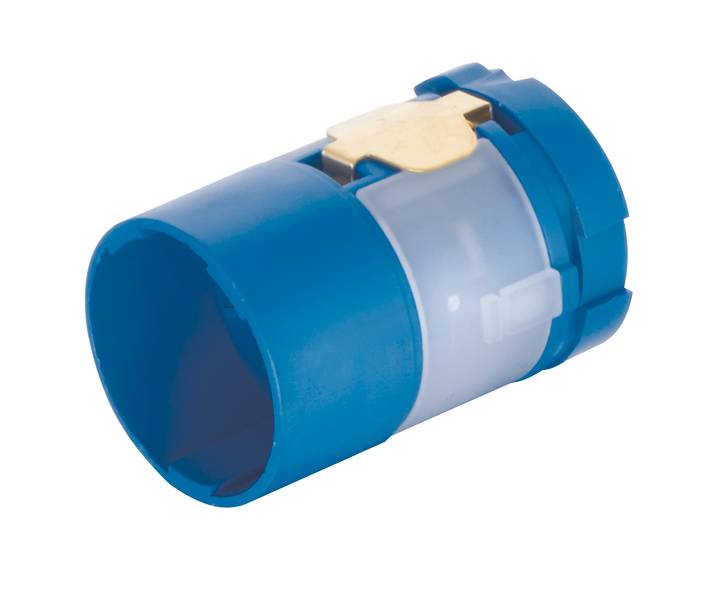

HARTING 09156083001 M23 inset Total number of pins: 8 + PE 1 pc(s)
Product type
M23 inset
Total no. of pins
8 + PE
Connection
Crimp
Content
1 pc(s)
Type
09 15 608 3001
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: Round plug connector M23
- Component: Inserts
- Connection type: Crimp connection
- Number of contacts: 8
- Insulation resistance >1013 Ω
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Test voltage Ueff 4 kV
- Material application: Polyamide (PA)
- Colour insert: Blue
- Material flammability class acc. To UL 94: V-0
- Net weight: 7.84 g
- Designation: Power
- Number of signal pins: 4
- Number of power contacts: 3
- Notes: Please order crimp contacts separately.;4x 2 mm;4x 1 mm
- Fire protection in rail vehicles: EN 45545-2 (2020-08)
- Gender: Pen
- Conductor cross-section: 0.14 ... 4 mm².
- Further contacts: PE contact
- Rated current (signal) 8 A
- Rated current (Power) 28 A.
- Rated voltage (Power) 600 V
- Rated voltage (signal) 300 V
- Rated surge voltage (signal) 2.5 kV
- Pollution level (signal): 3
- Rated surge voltage (Power) 4 kV
- Pollution level (Power): 3
- Type
09 15 608 3001
- Product type
M23 inset
- Total no. of pins
8 + PE
- Connection
Crimp
- Factory colour
Blue
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Weight
7.84 g
- Manufacturer part #
09156083001
- Number of pins
8
- max. cross section
4 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 4 mm²
8
Pin
-40-125 °C
V0
Crimp connection
Other
0.14-4 mm²
0.14-4 mm²
FALSE
Polyamide (PA)
Other
Thermoplastic
Plastic
500
Documents & Downloads
Datasheet
Datasheet 3007849 HARTING 09156083001 M23 inset Total number of pins: 8 + PE 1 pc(s)
Datasheet 3007849 HARTING 09156083001 M23 inset Total number of pins: 8 + PE 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3007849 HARTING 09156083001 M23 inset Total number of pins: 8 + PE 1 pc(s)
Description
Inserts, Crimp connection, Pin, Polyamide (PA), Blue, Contacts: 8 PE contact, conductor cross-section: 0.14...4 mm²
