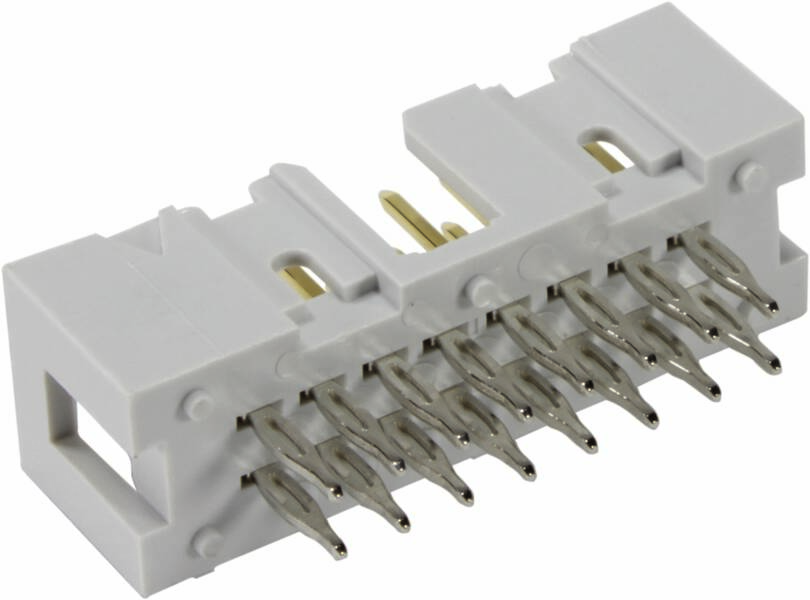

HARTING 09185066329 Edge connector (pins) No. of rows 2 1 pc(s)
Connector type
straight
No. of rows
2
Total number of pins
6
CS
2.54 mm
Connection
Press-in
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 6
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Connector type
straight
- No. of rows
2
- Total number of pins
6
- CS
2.54 mm
- Connection
Press-in
- Factory colour
Grey
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Contact material
Copper alloy
- Case material
PA
- Manufacturer part #
09185066329
- Content
1 pc(s)
- Type
09 18 506 6329
Printed circuit board to cable
Other
6
Other
-55-105 °C
Other
Press-in connection
Other
5.5 mm
2.54 mm
2
1.6 mm
Thermoplastic
90° (upwards vertical)
Other
1 A
