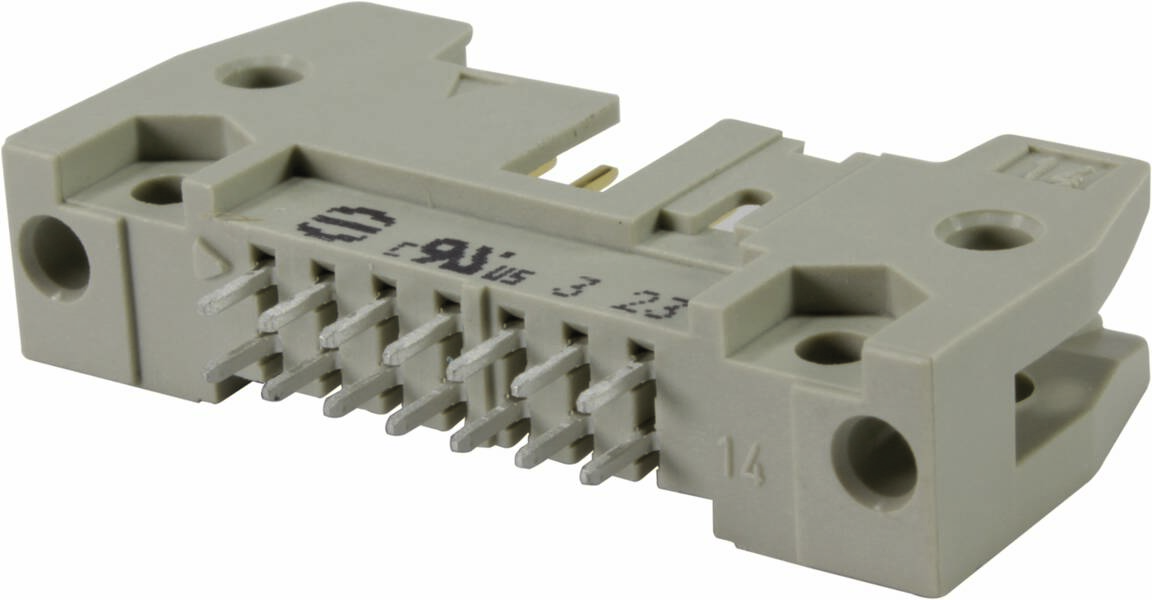

HARTING 09185146902 Edge connector (pins) No. of rows 2 1 pc(s)
Product type
Edge connector (pins)
Connector type
straight
CS
2.54 mm
Content
1 pc(s)
Total number of pins
14
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Terminal pin strip
- Total number of pins 14
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Series: SEK standard
- Component: Terminal strip
- Contact description: Straight
- Connection type: Shaft soldering connection
- Type of connection: Circuit board to cable
- Number of contacts: 14
- Length of the Pins 4.5 mm
- Interlocking type: With long levers
- Plug contact series 2
- Pitch, connection side 2.54 mm
- Rated current 1 A
- Insulation resistance >109 Ω
- Continuous resistance ≤ 20 mΩ
- Temperature limit: -55 ... +125 °C
- Plug and pull force ≤ 28 N
- Mating cycles ≥ 250
- Test voltage Ueff 1 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Thermoplastic molding material (PBT)
- Colour insert: Grey
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- IEC 60603-13 standard
- Net weight: 7.3 g
- Railway classification: F3/I3
- Product type
Edge connector (pins)
- Connector type
straight
- Total number of pins
14
- No. of rows
2
- CS
2.54 mm
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Connection
Soldering
- Factory colour
Grey
- Case material
PA
- Manufacturer part #
09185146902
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 18 514 6902
- Resistance
20 mΩ
- Insulation resistance
109 Ω
- Pin length
4.5 mm
Printed circuit board to cable
Other
14
Other
-55-125 °C
Other
Soldering connection
Tin
4.5 mm
2.54 mm
2
Thermoplastic
90° (upwards vertical)
Other
1 A
Documents & Downloads
Datasheet
Datasheet 3002883 HARTING 09185146902 Edge connector (pins) No. of rows 2 1 pc(s)
Datasheet 3002883 HARTING 09185146902 Edge connector (pins) No. of rows 2 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3002883 HARTING 09185146902 Edge connector (pins) No. of rows 2 1 pc(s)
Description
Terminal strip, shaft solder connection, rated current 1 A, contacts: 14, straight, copper alloy
