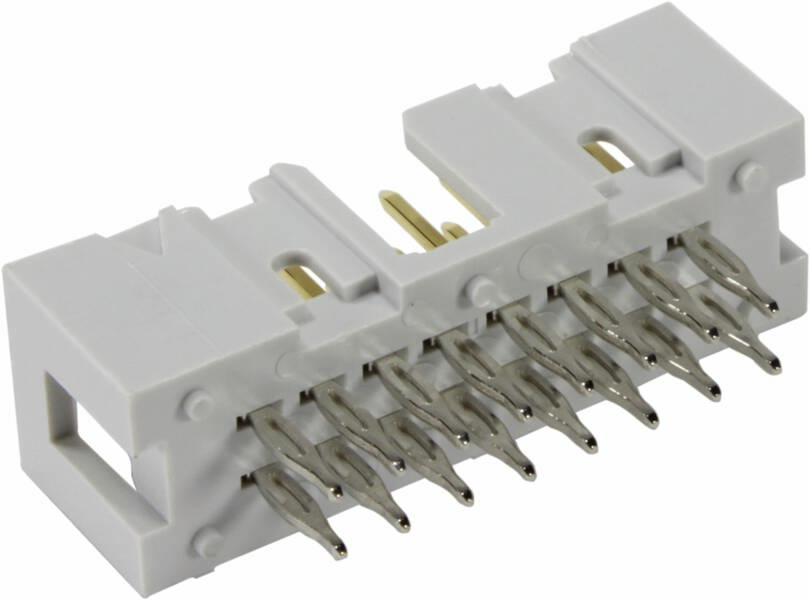

HARTING 09185407329 Edge connector (pins) No. of rows 2 1 pc(s)
Product type
Edge connector (pins)
Connector type
straight
CS
2.54 mm
Content
1 pc(s)
Total number of pins
40
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 40
- No. of rows 2
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (pins)
- Connector type
straight
- Total number of pins
40
- No. of rows
2
- CS
2.54 mm
- Nominal current
1 A
- Nominal current - rounded value
1 A
- Connection
Press-in
- Factory colour
Grey
- Case material
PA
- Manufacturer part #
09185407329
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 18 540 7329
Printed circuit board to cable
Other
40
Other
-55-105 °C
Other
Press-in connection
Other
5.5 mm
2.54 mm
2
1.6 mm
Thermoplastic
90° (upwards vertical)
Other
1 A
