Name: HARTING 09338242703 Connector Han® E 24 + PE Screws 1 pc(s) Piece
Brand: HARTING
SKU: 3007977

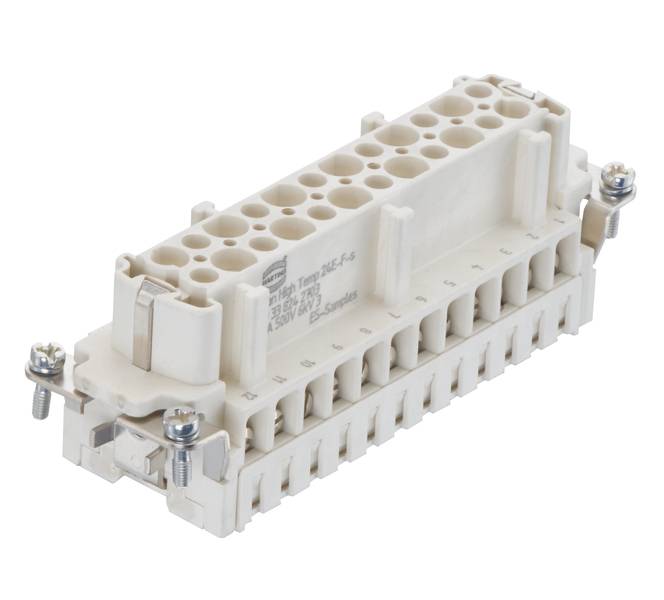

Ivory-coloured electrical connector with multiple terminal blocks and screws at the corners, for industrial applications.

Packaging type

Piece

Product type

Connector

Series

Han® E

Connection

Screws

Total no. of pins

24 + PE

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Series: HAN E® High Temp
Connection type: screw terminals.
Number of contacts: 24
Rated current ‌ 16 A
Insulation resistance >1010 Ω
Continuous resistance ≤ 1 mΩ
Temperature limit: -40 ... +200 °C with HAN® High Temp components
Mating cycles ≥ 500
Material application: Liquid-crystal polymer (LCP)
Material contacts: Copper alloy
Silver-plated contact surface
Material flammability class acc. To UL 94: V-0
Standards IEC 60664-1; IEC 61984
Net weight: 151.5 g
Rated voltage: 500 V
Dimensioning surge voltage: 6 kV
Pollution level 3
Fire protection in rail vehicles: EN 45545-2 (2020-08)
Gender: Jack
Conductor cross-section: AWG 18 ... AWG 14
Wire stripping length: 7.5 mm
Tightening torque 0.5 Nm
Design size 24 B
Approvals DNV GL
PE contact: Yes
With wire protection: Yes

Packaging type: Piece

Product type: Connector

Series: Han® E

Features: with screw connection

Connection: Screws

Number of pins: 24

Total no. of pins: 24 + PE

Core cross section (min.): 0.75 mm²

Core cross section (max.): 2.5 mm²

Mating cycles: 500

Series: Han E® High Temp

Content: 1 pc(s)

Max. temperature: 200 °C

Min. temperature: -40 °C

Leading contact (PE): Yes

Connector type: Socket

: 500 V

: TRUE

: 24

: Bus

: -40-200 °C

: V0

: 6 kV

: Screw connection

: Silver

: 3

: FALSE

: 0.75-2.5 mm²

: 0.75-2.5 mm²

: TRUE

: Other copper alloys

: Thermoplastic

: 16 A

: Thermoplastic

: 500

: 24

UKCA: yes
