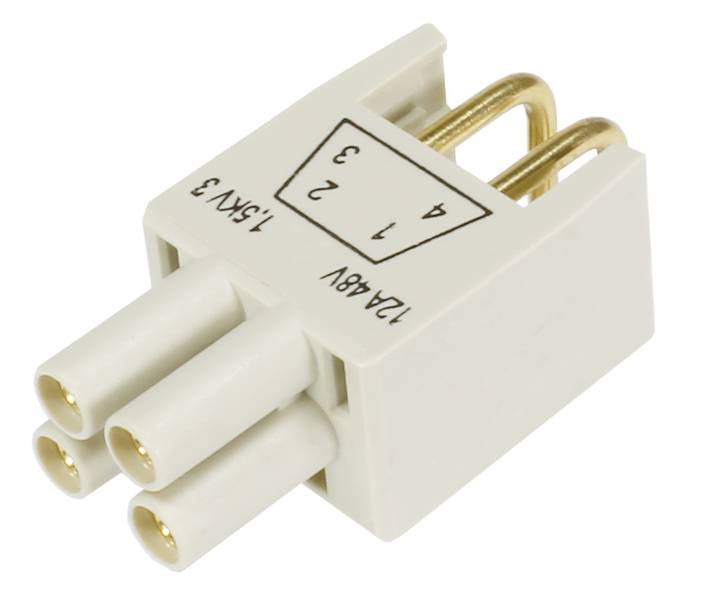

HARTING 09465004400 Socket enclosure Han® PushPull Power 4 Soldering 1 pc(s)
Product type
Socket enclosure
Series
Han® PushPull Power
Connection
Soldering
Total no. of pins
4
Features
L-shaped
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Harting PushPull (V4) Series
- Component: Jack
- Connection type: Solder connection
- Number of contacts: 4
- Rated current 12 A
- Temperature limit: -40 ... +70 °C
- Mating cycles ≥ 750
- Material flammability class acc. To UL 94: V-0
- IEC 61076-3-106 version 4 (V4);EN 45545-2
- Net weight: 5.2 g
- Designation: Power
- Rated voltage: 48 V
- Dimensioning surge voltage: 1.5 kV
- Pollution level 3
- Description: Angled
- Shielding: Unshielded
- Protection class according to IEC 60529:IP65;IP67
- Approvals DNV GL
- Material housing: Plastic
- Colour of housing: Black
- Product type
Socket enclosure
- Series
Han® PushPull Power
- Features
L-shaped
- Connection
Soldering
- Number of pins
4
- Total no. of pins
4
- Mating cycles
≥ 750
- Series
HARTING PushPull (V4)
- Content
1 pc(s)
- Max. temperature
70 °C
- Min. temperature
-40 °C
48 V
FALSE
4
Other
-40-70 °C
V0
1.5 kV
Soldering connection
Other
3
FALSE
Other
Other
12 A
Other
750
4
Documents & Downloads
Datasheet
Datasheet 3011286 HARTING 09465004400 Socket enclosure Han® PushPull Power 4 Soldering 1 pc(s)
Datasheet 3011286 HARTING 09465004400 Socket enclosure Han® PushPull Power 4 Soldering 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3011286 HARTING 09465004400 Socket enclosure Han® PushPull Power 4 Soldering 1 pc(s)
Description
Plug connector, socket, solder connection, rated current 12 A, contacts 4
