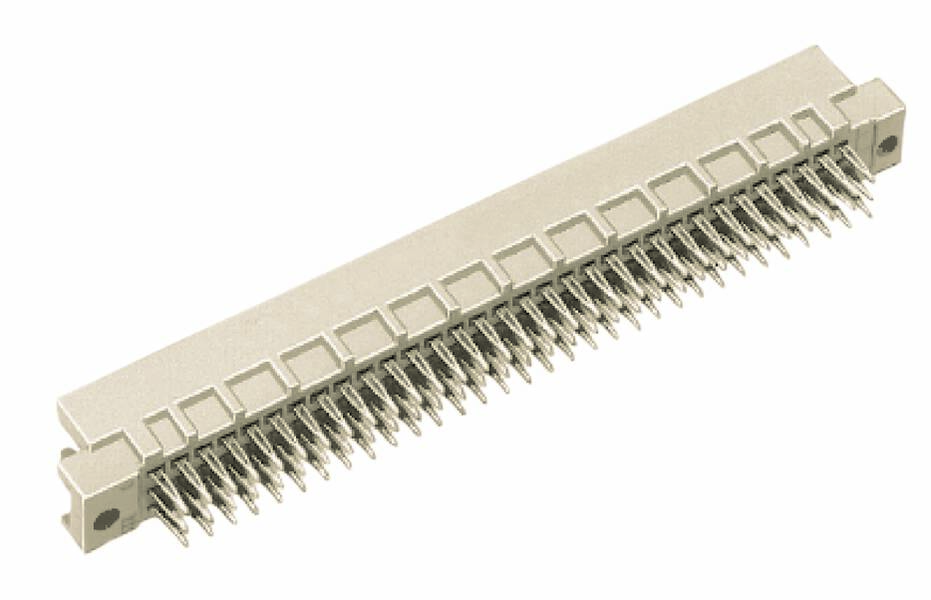

HARTING 09731966904 Edge connector (pins) No. of rows 3 1 pc(s)
Product type
Edge connector (pins)
Connector type
straight
CS
2.54 mm
Content
1 pc(s)
Total number of pins
96
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
- Total number of pins 96
- No. of rows 3
- Content 1 pc(s)
Technical specifications
- Product type
Edge connector (pins)
- Connector type
straight
- Total number of pins
96
- No. of rows
3
- CS
2.54 mm
- Connection
Press-in
- Factory colour
Pebble grey (RAL 7032)
- Case material
PA
- Manufacturer part #
09731966904
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 73 196 6904
Printed circuit board to cable
Other
96
Other
-40-105 °C
Other
Press-in connection
Other
5 mm
2.54 mm
3
1.6 mm
2.54 mm
Thermoplastic
90° (upwards vertical)
Flange
2 A
