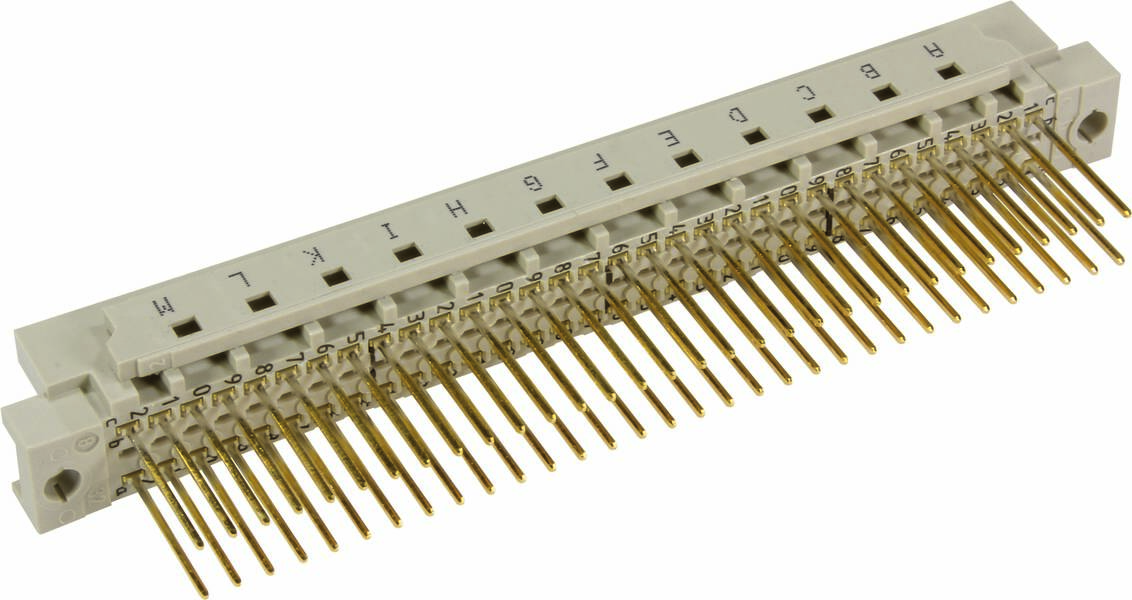

HARTING 09736966947 Edge connector (pins) No. of rows 3 1 pc(s)
Product type
Edge connector (pins)
Connector type
straight
CS
2.54 mm
Content
1 pc(s)
Total number of pins
96
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Terminal pin strip
- Total number of pins 96
- No. of rows 3
- Content 1 pc(s)
Technical specifications
- DIN 41612 series
- Component: Terminal strip
- Contact description: Straight
- Type of connection: Winding connection
- Type of connection: Circuit board to cable; cable to cable
- Number of contacts: 96
- Length of the Pins 13 mm
- Plug contact series 3
- Pitch, connection side 2.54 mm
- Rated current: Rated current measured at 20 °C, for details see derating curve
- Insulation resistance >1012 Ω
- Continuous resistance ≤ 20 mΩ
- Temperature limit: -55 ... +125 °C
- Plug and pull force ≤ 90 N
- Mating cycles ≥ 400
- Test voltage Ueff: 1 kV (contact-contact);1.55 kV (contact-earth)
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Thermoplastic molding material, glass fiber reinforced
- Colour use: RAL 7032 (pebble gray)
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni connector side; Ni connector side
- Material flammability class acc. To UL 94: V-0
- IEC 60603-2 standard
- Net weight: 17.55 g
- Name: Type R
- Pitch, plug-side 2.54 mm
- Airway: ≥ 1.2 mm
- Creepage distance ≥ 1.2 mm
- Features: Lead-free
- PCB mounting: With flange
- Hot plugging: No.
- Path classification: F4/I3 according to NFF 16-101/102
- Contact equipment: Rows a, b and c, positions 1, 2, ... , 31, 32
- Coding: Contact loss; page coding
- Product type
Edge connector (pins)
- Connector type
straight
- Total number of pins
96
- No. of rows
3
- CS
2.54 mm
- Connection
Wire wrap
- Factory colour
Pebble grey (RAL 7032)
- Case material
PA
- Manufacturer part #
09736966947
- Content
1 pc(s)
- Contact material
Copper alloy
- Type
09 73 696 6947
- Resistance
20 mΩ
- Insulation resistance
1012 Ω
- Pin length
13 mm
Printed circuit board to cable
Other
96
Other
-55-125 °C
Other
Direct connection
Other
13 mm
2.54 mm
3
2.54 mm
Thermoplastic
90° (upwards vertical)
Flange
2 A
Documents & Downloads
Datasheet
Datasheet 3003583 HARTING 09736966947 Edge connector (pins) No. of rows 3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3003583 HARTING 09736966947 Edge connector (pins) No. of rows 3 1 pc(s)
Description
Terminal strip, winding connection, rated current 2 A, contacts: 96, straight, Copper alloy, precious metal via Ni connector side, Ni connector side
