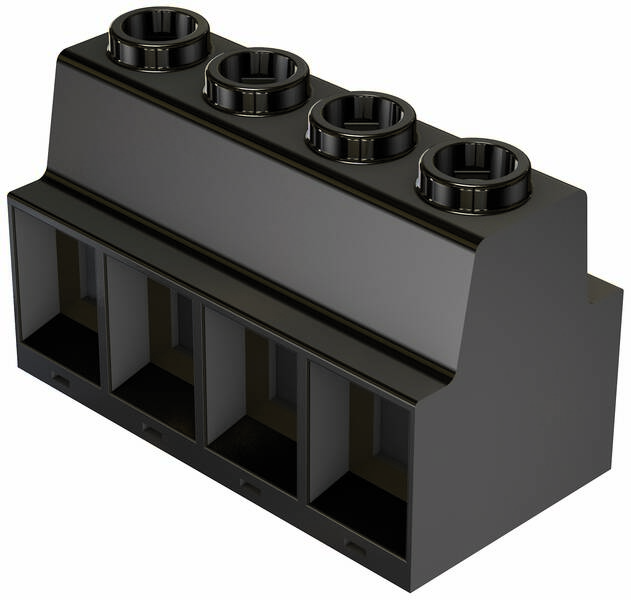

HARTING 14020227402000 Print terminal Number of pins 2 Black 1 pc(s) Piece
Packaging type
Piece
Product type
Print terminal
CS
15 mm
Pins per row
2
Number of pins
2
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 1 pc(s)
Technical specifications
- Range: Har-flexicon®
- Component: Print terminal
- Connection type: Screw connection; reflow soldering connection (THR)
- Type of connection: Circuit board to cable
- Number of contacts: 2
- Plug contact series 1
- Pitch, connection side 15 mm
- Rated current 135 A
- Temperature limit: -40 ... +110 °C
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA);polyphthalamide (PPA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 44.98 g
- Rated voltage: 1,000 V
- Dimensioning surge voltage: 8 kV
- Pollution level 3
- Range of application: For THR reflow soldering processes
- Conductor cross-section: AWG 20 ... AWG 1
- Stripped length: 18 mm
- Description: Horizontal
- Tightening torque: 2.1 ... 2.5 Nm
- UKCA approved
- M5 screw connection size
- Packaging type
Piece
- Type
14 02 022 7402 000
- Product type
Print terminal
- Features
for THR soldering
- CS
15 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Min. stripping length
18 mm
- Stripping length (max.)
18 mm
- Connection
Screw terminal
- Nominal current
135 A
- Nominal current - rounded value
135 A
- AWG (min.)
20
- Connector orientation
Parallel (to the PCB)
- AWG max.
1
- Contact material
Copper alloy
- Enclosure material
Polyamide
- Factory colour
Black
- Weight
44.98 g
- Manufacturer part #
14020227402000
- Content
1 pc(s)
- Nominal voltage
1000 V
Printed circuit board to cable
Other
1000 V
2
Other
-40-110 °C
Other
8 kV
Soldering connection
Tin
15 mm
1
Polyamide (PA)
Other
Other
135 A
Documents & Downloads
Datasheet
Datasheet 3003626 HARTING 14020227402000 Print terminal Number of pins 2 Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003626 HARTING 14020227402000 Print terminal Number of pins 2 Black 1 pc(s) Piece
Description
PCB terminal, horizontal, screw connection, rated current 135 A, contacts: 2, Copper alloy, Sn via Ni connector side, Sn via Ni connection side
