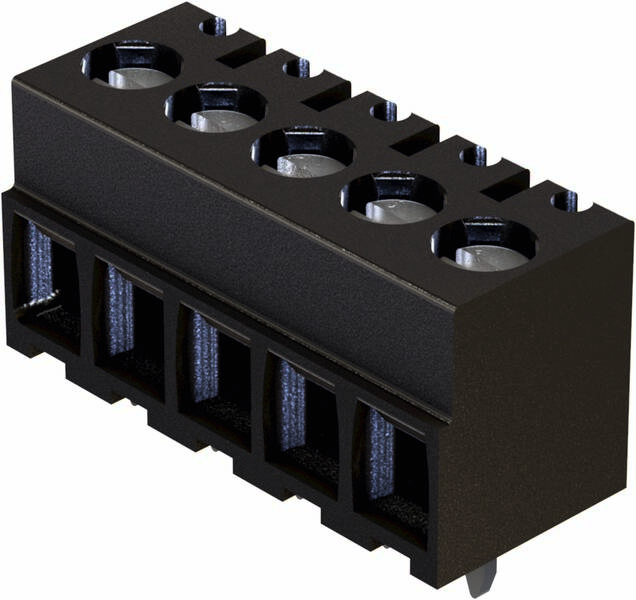

HARTING 14020614402000 Print terminal Number of pins 6 Black 1 pc(s) Piece
Packaging type
Piece
Product type
Print terminal
CS
3.5 mm
Pins per row
6
Number of pins
6
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 1 pc(s)
Technical specifications
- Range: Har-flexicon®
- Component: Print terminal
- Connection type: Screw connection; reflow soldering connection (THR)
- Type of connection: Circuit board to cable
- Number of contacts: 6
- Plug contact series 1
- Pitch, connection side 3.5 mm
- Rated current 12 A
- Temperature limit: -40 ... +110 °C
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA);polyphthalamide (PPA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 5.93 g
- Rated voltage: 150 V
- Dimensioning surge voltage: 2.5 kV
- Pollution level 3
- Range of application: For THR reflow soldering processes
- Conductor cross-section: AWG 28 ... AWG 16
- Stripping length: 5 ... 6 mm
- Description: Horizontal
- Tightening torque: 0.2 ... 0.25 Nm
- UKCA approved
- Screw connection size M2
- Packaging type
Piece
- Type
14 02 061 4402 000
- Product type
Print terminal
- Features
for THR soldering
- CS
3.5 mm
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Min. stripping length
5 mm
- Stripping length (max.)
6 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- AWG (min.)
28
- Connector orientation
Parallel (to the PCB)
- AWG max.
16
- Contact material
Copper alloy
- Enclosure material
Polyamide
- Factory colour
Black
- Weight
5.93 g
- Manufacturer part #
14020614402000
- Content
1 pc(s)
- Nominal voltage
150 V
Printed circuit board to cable
Other
150 V
6
Other
-40-110 °C
Other
2.5 kV
Soldering connection
Tin
3.5 mm
1
Polyamide (PA)
Other
Other
12 A
Documents & Downloads
Datasheet
Datasheet 3003624 HARTING 14020614402000 Print terminal Number of pins 6 Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003624 HARTING 14020614402000 Print terminal Number of pins 6 Black 1 pc(s) Piece
Description
PCB terminal, horizontal, screw connection, rated current 12 A, contacts: 6, Copper alloy, Sn via Ni connector side, Sn via Ni connection side
