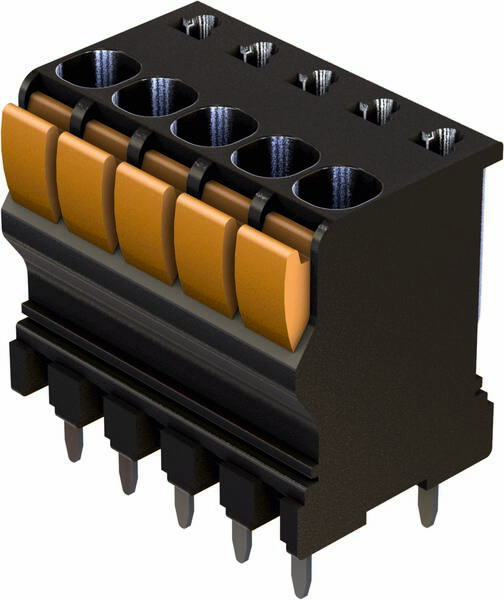

HARTING 14020814101000 Print terminal Number of pins 8 Black 1 pc(s) Piece
Packaging type
Piece
Product type
Print terminal
CS
3.5 mm
Pins per row
8
Number of pins
8
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
PCB terminal
- Content 1 pc(s)
Technical specifications
- Range: Har-flexicon®
- Component: Print terminal
- Connection type: Push-in spring-force connection;reflow soldering connection (THR)
- Type of connection: Circuit board to cable
- Number of contacts: 8
- Plug contact series 1
- Pitch, connection side 3.5 mm
- Rated current 10 A
- Insulation resistance >109 Ω
- Constant resistance: 15 mΩ
- Temperature limit: -40 ... +110 °C
- Insulation material group I (600 ≤ CTI)
- Material application: Polyamide (PA);polyphthalamide (PPA)
- Colour insert: Black
- Material contacts: Copper alloy
- Contact surface: Sn over Ni connectors side; Sn over Ni connection side
- Material flammability class acc. To UL 94: V-0
- Net weight: 0.1 g
- Rated voltage: 220 V
- Dimensioning surge voltage: 4 kV
- Pollution level 3
- Conductor cross-section: AWG 30 ... AWG 16
- Stripping length: 9 ... 10 mm
- Description: Vertical
- UKCA approved
- Packaging type
Piece
- Type
14 02 081 4101 000
- Product type
Print terminal
- Features
+ push-in spring bracket
- CS
3.5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Connection
Push-in spring-loaded terminal
- Nominal current
10 A
- Nominal current - rounded value
10 A
- AWG (min.)
30
- Connector orientation
Perpendicular (to the PCB)
- AWG max.
16
- Contact material
Copper alloy
- Enclosure material
Polyamide
- Factory colour
Black
- Weight
0.1 g
- Manufacturer part #
14020814101000
- Content
1 pc(s)
- Nominal voltage
220 V
Printed circuit board to cable
Other
220 V
8
Other
-40-110 °C
Other
4 kV
Soldering connection
Tin
3.5 mm
1
Polyamide (PA)
Other
Other
10 A
Documents & Downloads
Datasheet
Datasheet 3003650 HARTING 14020814101000 Print terminal Number of pins 8 Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3003650 HARTING 14020814101000 Print terminal Number of pins 8 Black 1 pc(s) Piece
Description
PCB terminal, vertical push-in spring force connection, rated current 10 A, contacts: 8, copper alloy
