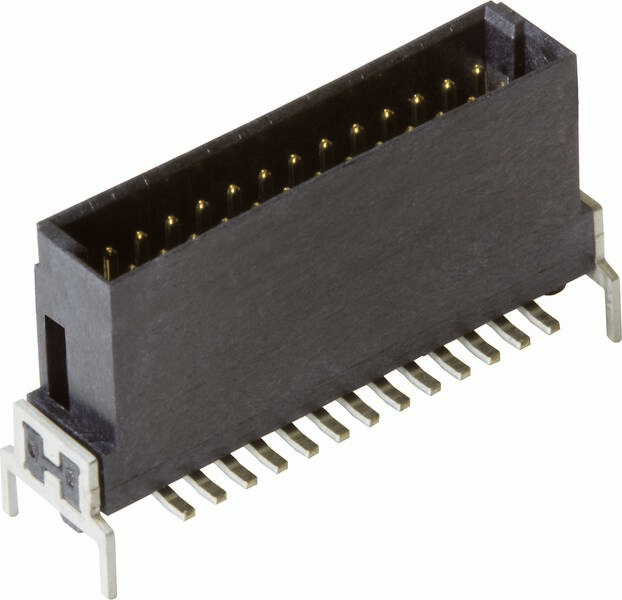

HARTING 15130802401000 Edge connector (pins) No. of rows 2 250 pc(s)
Product type
Edge connector (pins)
Connector type
straight
CS
1.27 mm
Content
250 pc(s)
Total number of pins
80
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Terminal pin strip
- Total number of pins 80
- No. of rows 2
- Content 250 pc(s)
Technical specifications
- Range: Har-flex®
- Component: Terminal strip
- Contact description: Straight
- Connection type: Reflow soldering connection (THR)
- Type of connection: Motherboard to Daughtercard;Mezzanine; PCB to cable
- Number of contacts: 80
- Plug contact series 2
- Pitch, connection side 1.27 mm
- Insulation resistance >109 Ω
- Constant resistance < 25 mΩ
- Temperature limit: -55 ... +125 °C
- Mating cycles ≥ 500
- Test voltage Ueff 0.5 kV
- Insulation material group IIIa (175 ≤ CTI < 400)
- Material application: Liquid-crystal polymer (LCP)
- Material contacts: Copper alloy
- Contact surface: Precious metal via Ni, plug side, Sn via Ni connection side
- Material flammability class acc. To UL 94: V-0
- Name: Signal
- Pitch, plug-side 1.27 mm
- Airway: ≥ 0.4 mm
- Creepage distance ≥ 0.4 mm
- Stack height 4.85 mm
- Product type
Edge connector (pins)
- Connector type
straight
- Total number of pins
80
- No. of rows
2
- CS
1.27 mm
- Connection
THR
- Case material
PA
- Manufacturer part #
15130802401000
- Content
250 pc(s)
- Contact material
Copper alloy
- Type
15 13 080 2401 000
- Resistance
25 mΩ
- Insulation resistance
109 Ω
Printed circuit board to cable
Other
80
Other
-55-125 °C
Other
Soldering connection
Tin
1.27 mm
2
1.27 mm
Liquid crystal polymer
90° (upwards vertical)
Other
Documents & Downloads
Datasheet
Datasheet 3002802 HARTING 15130802401000 Edge connector (pins) No. of rows 2 250 pc(s)
User & Safety Instructions
User & Safety Instructions 3002802 HARTING 15130802401000 Edge connector (pins) No. of rows 2 250 pc(s)
Description
Terminal strip, reflow solder connection (THR), contacts: 80, straight, copper alloy, Precious metal over Ni connector side, Sn over Ni side
